Input Shaft Seal: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

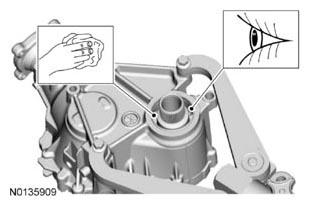

  1. Clean the specified component with the special material. Visual check.
    G08616373
  2. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/4, Handle 205-153 (T80T-4000-W).

    G07810576
  3. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/5, Handle 205-153 (T80T-4000-W).

    G07810577
  4. New compression seal.
    G07795468
  5. Install the PTU  . Refer to POWER TRANSFER UNIT (PTU) .
  6. Fill the PTU  as necessary. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
