Rear Lamp Assembly: MKX
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

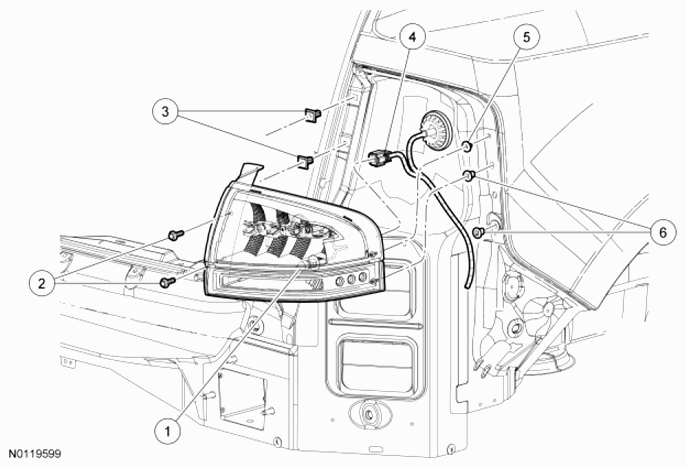

| Item | Part Number | Description |
|---|---|---|
| 1 | 13404/13405 | Outboard rear lamp assembly (RH/LH) |
| 2 | W712801 | Outboard rear lamp assembly bolts (2 required) |
| 3 | W711031 | Outboard rear lamp assembly nuts (2 required) |
| 4 | - | Outboard rear lamp assembly electrical connector (part of 14A005) |
| 5 | 13A457 | Upper outboard rear lamp assembly grommet |
| 6 | 13A457 | Lower outboard rear lamp assembly grommets (2 required) |
