Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

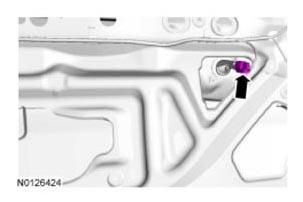

  2. Disconnect the liftgate lamp assembly electrical connector.
    G09298108

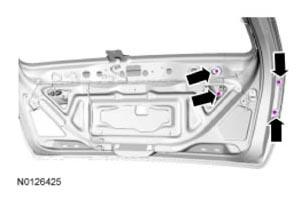

  3. Remove the 4 liftgate lamp assembly nuts and the liftgate lamp assembly.
    G09298109

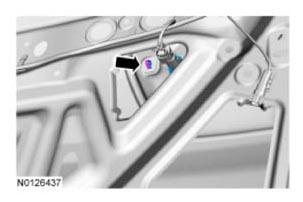

  4. Release the liftgate lamp assembly clip and remove the lamp assembly.
    G09298110
  5. To install, reverse the removal procedure.
