Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

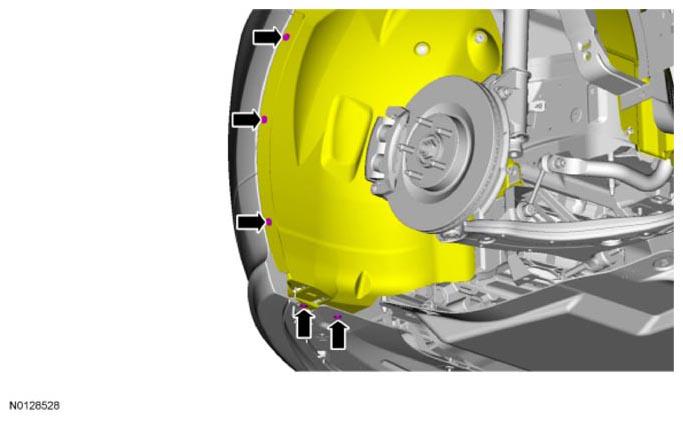

NOTE: The wheel and tire shown in illustration removed for clarity.

Remove the 5 screw and washers and position the fender splash shield aside.
Disconnect the fog lamp electrical connector.
Release the tabs and remove the fog lamp cover and outer bezel as an assembly.
Release the 2 locking tabs and remove the fog lamp.
To install, reverse the removal procedure.
