Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  2. NOTE: Rotate the steering wheel to access the top 2 screws.

    Remove the 3 steering wheel switch trim bezel screws.

    Fig 1: Locating Steering Wheel Switch Trim Bezel Screws
    G07402174Courtesy of FORD MOTOR CO.
  3. Disconnect the steering wheel switch electrical connectors.
  4. Remove the steering wheel switch trim.

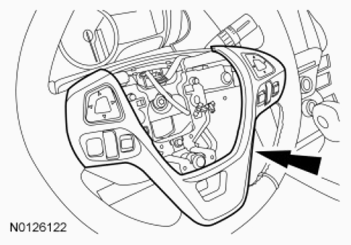

    Fig 2: Locating Steering Wheel Switch Trim
    G07402175Courtesy of FORD MOTOR CO.
  5. Release the 4 retainer tabs on the backside of the steering wheel trim and remove the steering wheel switch.
    Fig 3: Locating Steering Wheel Switch Retainer Tabs
    G09291803Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
