Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

MKX

Remove the instrument panel LH upper section. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Edge
Remove the center console LH upper finish molding.

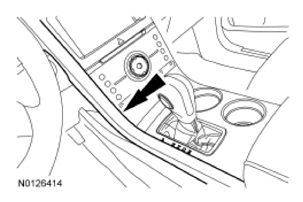

Fig 1: Locating Center Console LH Upper Finish Molding
Courtesy of FORD MOTOR CO.
Remove the instrument panel right finish panel.

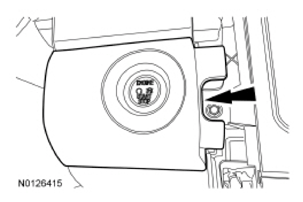

Fig 2: Locating Instrument Panel Right Finish Panel
Courtesy of FORD MOTOR CO.

Edge and MKX
Disconnect the start/stop switch electrical connector.
Using a pocket screwdriver (or similar tool), disengage the 4 retainer tabs and remove the start/stop switch.

Fig 3: Locating Start/Stop Switch Retainer Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
