Rear Brake Pads: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Rear Caliper Piston Adjuster 206-026 (T87P-2588-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Performance DOT 3 Motor Vehicle Brake Fluid (US)/Motorcraft® Brake Fluid - Heavy Duty DOT 3 (Canada) PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C65-A1 |
| Motorcraft® Metal Brake Parts Cleaner (US)/Motorcraft® Brake Parts Cleaner (Canada) PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |

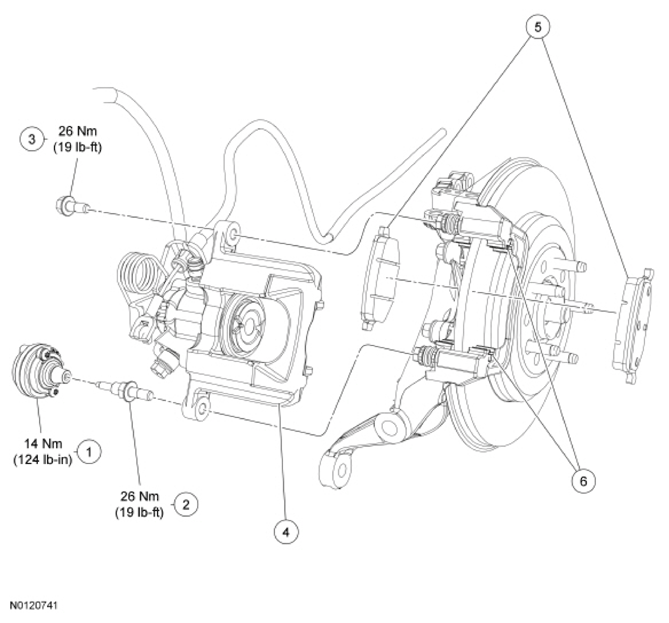

| Item | Part Number | Description |
|---|---|---|
| 1 | 4A263 | Brake noise damper |
| 2 | - | Brake caliper guide pin stud bolt (part of 2386) |
| 3 | - | Brake caliper guide pin bolt (part of 2386) |
| 4 | 2552 RH/2553 LH | Brake caliper |
| 5 | - | Brake pad (2 required) (part of 2200) |
| 6 | - | Brake pad slide clip (4 required) (part of 2200) |
