Rear Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

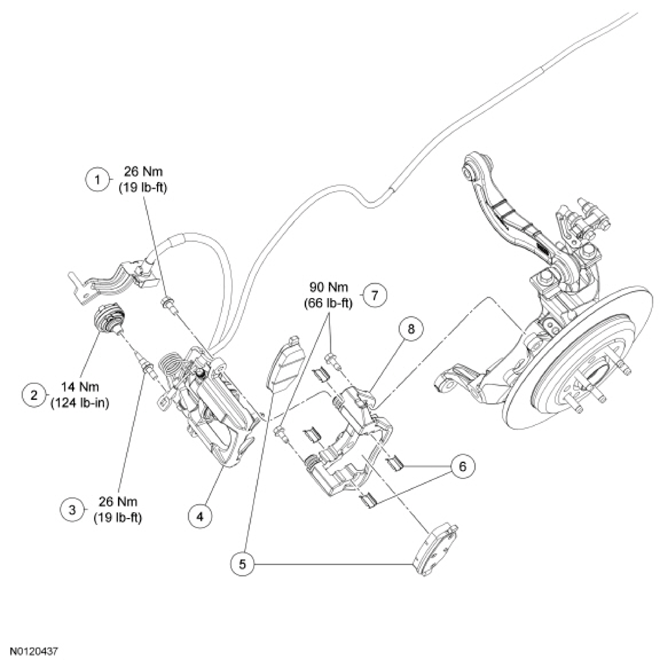

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper guide pin bolt (part of 2386) |
| 2 | 4A263 | Brake noise damper |
| 3 | - | Brake caliper guide pin stud bolt (part of 2386) |
| 4 | 2552 RH/2553 LH | Brake caliper |
| 5 | - | Brake pad (2 required) (part of 2200) |
| 6 | - | Brake pad slide clip (4 required) (part of 2200) |
| 7 | - | Brake caliper anchor plate bolt (2 required) (part of 2386) |
| 8 | 2B511 | Brake caliper anchor plate |
