Grille Shutter Actuator: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille shutter assembly. For additional information, refer to GRILLE SHUTTER ASSEMBLY .

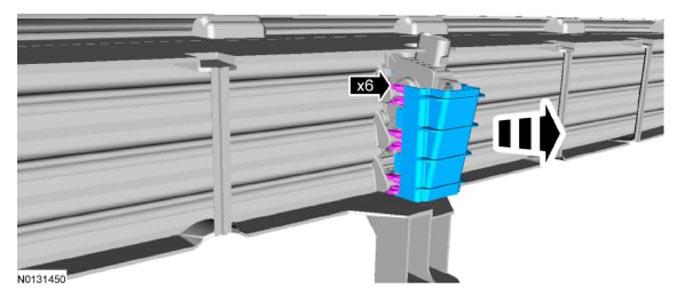

  2. G09298453

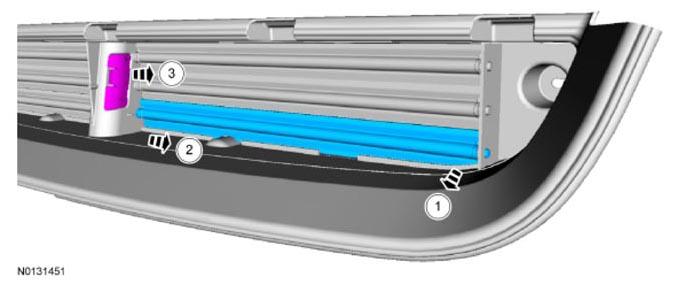

  3. G09298454

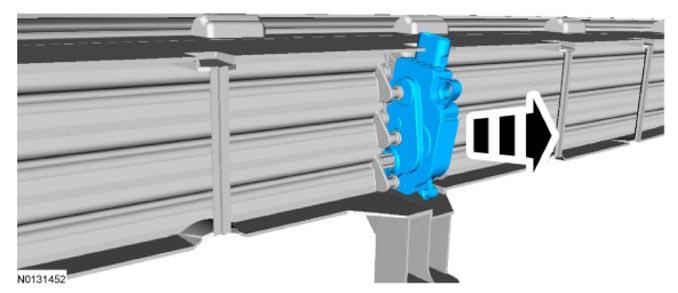

G09298455
