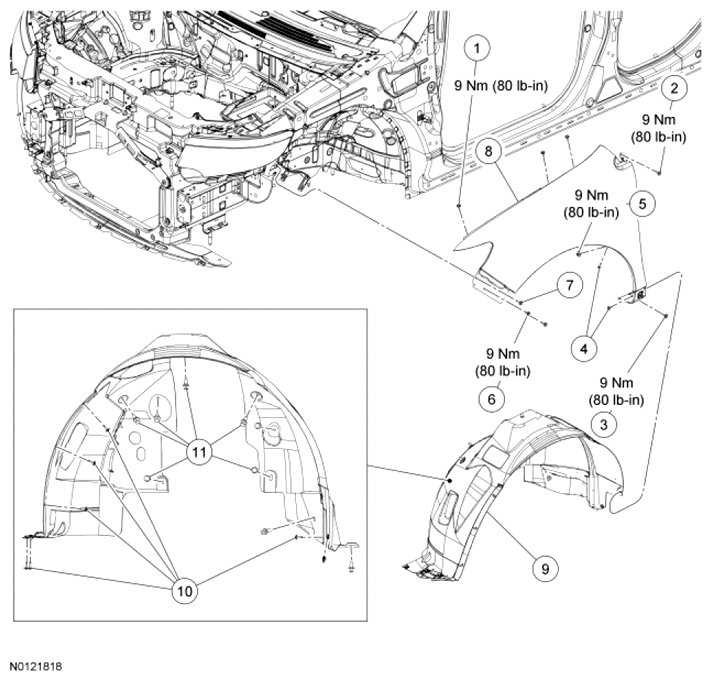

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Edge Shown in illustration, MKX Similar
| Item | Part Number | Description |
|---|---|---|
| 1 | W505423 | Front fender upper bolt (3 required) |
| 2 | W505423 | Front fender upper rear bolt |
| 3 | W505423 | Front fender lower rear bolt |
| 4 | W710763 | Front fender-to-front fender splash shield bolts (2 required) |
| 5 | W709603 | Front fender inner nut |
| 6 | W505423 | Front fender front bolt (2 required) |
| 7 | W505425 | Front headlamp assembly side bolt |
| 8 | 16005/16006 | Front fender (RH/LH) |
| 9 | 16102/16103 | Front fender splash shield (RH/LH) |
| 10 | W710763 | Front fender splash shield screws (6 required) |
| 11 | W712196 | Front fender splash shield pin-type retainers (9 required) |
- For additional information, refer to the appropriate procedures.
