Side Impact Sensor - Front Door
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
RH side shown in illustration, LH side similar.

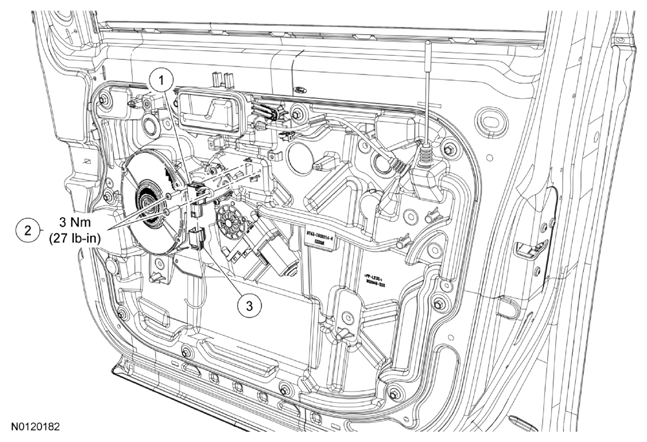

| Item | Part Number | Description |
|---|---|---|
| 1 | 14B345 | Side impact sensor |
| 2 | W506966 | Side impact sensor bolt |
| 3 | - | Side impact sensor electrical connector (part of 14630) |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM
and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is on.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Disconnect the side impact sensor electrical connector.
-
NOTE: Make sure the side impact sensor mating surface is clean and free of foreign material.
Remove the side impact sensor bolt and the side impact sensor.
- To install, tighten to 3 Nm (27 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
