Passenger Airbag - Edge: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

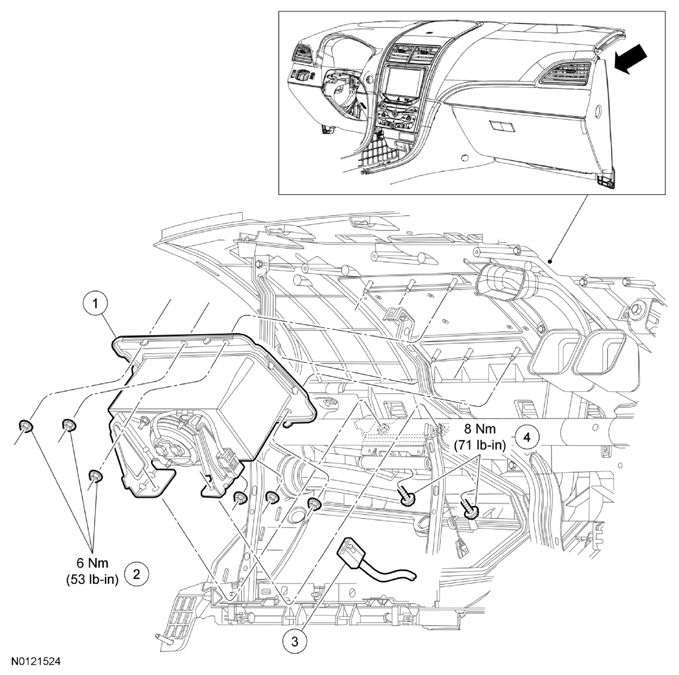

| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module assembly |
| 2 | - | Passenger air bag module nuts (6 required) (part of 044A74) |
| 3 | - | Passenger air bag module electrical connectors (part of 14401) |
| 4 | W505422 | Passenger air bag module-to-cross-car beam bracket bolts |
