Airbag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (2 of 2)
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

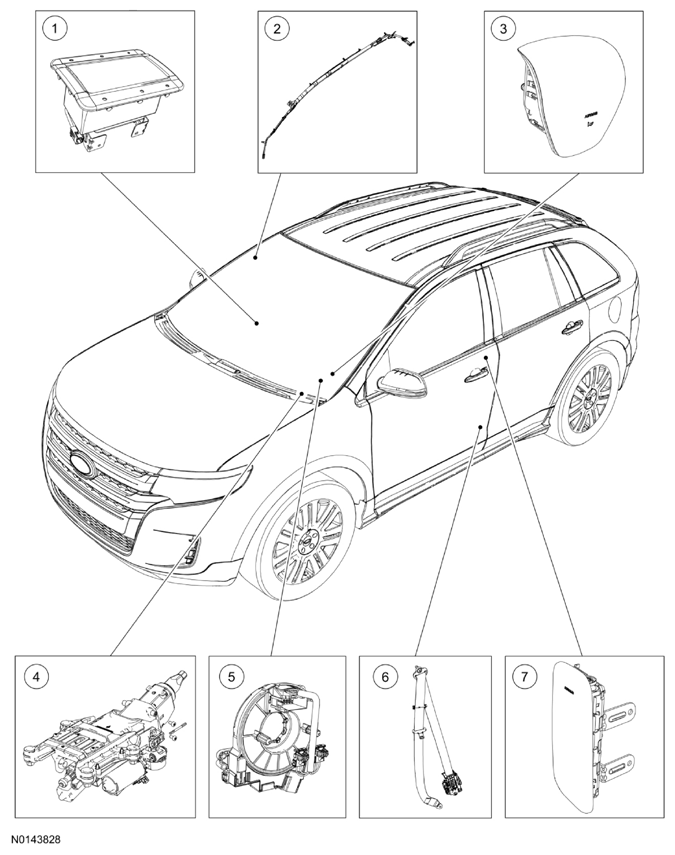

Edge shown in illustration, MKX similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 78044A74 | Passenger airbag |
| 2 | 78042D94 (RH)/78042D95 (LH) | Driver/Passenger Safety Canopy® |
| 3 | 78043B13 | Driver airbag |
| 4 | 3C529 | Deployable steering column |
| 5 | 14A664 | Clockspring |
| 6 | 78611B08 (RH)/78611B09 (LH) | Driver/Passenger safety belt retractor pretensioner assembly (includes driver side adaptive load limiter) |
| 7 | 78611D10 (RH)/78611D11 (LH) | Driver/Passenger seat side airbag |
