Airbag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (1 of 2)
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

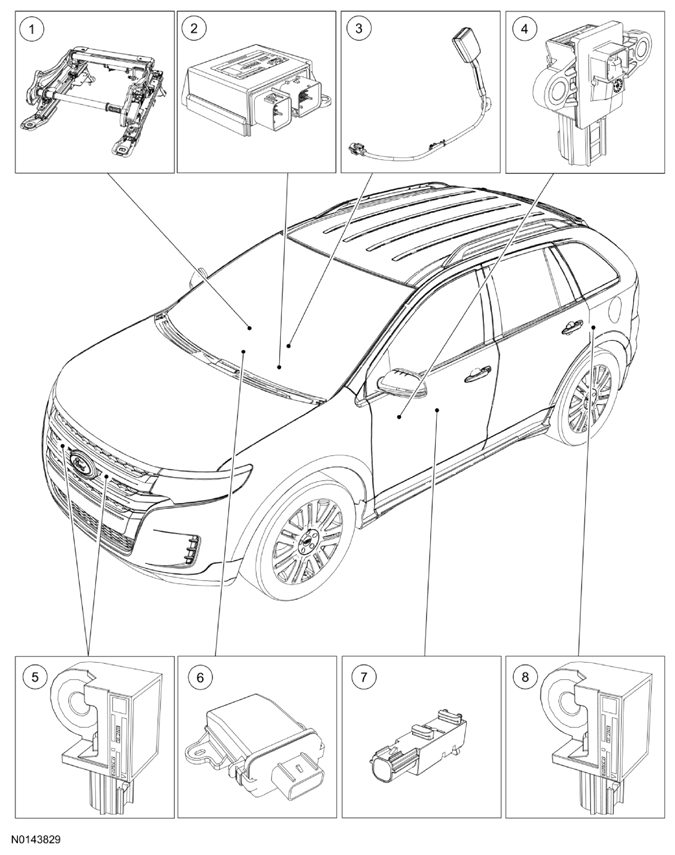

Edge shown in illustration, MKX similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61704 (manual seat)/61710 (power seat) | Passenger seat track assembly (includes OCS weight sensor bolts) |
| 2 | 14B321 | RCM |
| 3 | 7861202 (RH)/7861203 (LH) | Driver/Passenger safety belt buckle (includes buckle switch) |
| 4 | 14B345 | Driver/Passenger first row side impact sensor (pressure sensor) (located in front door) |
| 5 | 14B345 | LH/RH front impact severity sensor |
| 6 | 14B422 | OCSM |
| 7 | 14B416 | Driver/Passenger seat position sensor |
| 8 | 14B345 | Driver/Passenger second row side impact sensor (C-pillar) |
