Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Separator, Ball Joint 204-592 |
NOTE:
All-Wheel Drive (AWD) shown in illustration, Front Wheel Drive (FWD) similar.

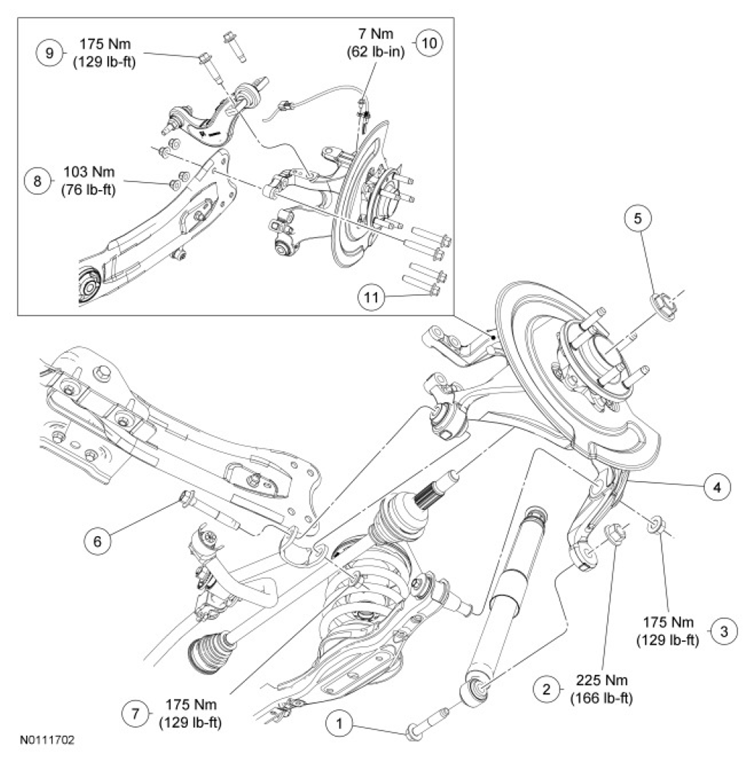

| Item | Part Number | Description |
|---|---|---|
| 1 | W715231 | Shock absorber lower bolt |
| 2 | W520517 | Shock absorber lower nut |
| 3 | W520516 | Lower control arm outboard nut |
| 4 | 5B759 LH/5B758 RH | Wheel knuckle |
| 5 | W712435 | Wheel hub nut All-Wheel Drive (AWD) |
| 6 | W711114 | Toe link outboard bolt |
| 7 | W520516 | Toe link outboard nut |
| 8 | W520214 | Wheel knuckle-to-trailing arm nuts (4 required) |
| 9 | W715259 | Upper control arm outboard bolts (2 required) |
| 10 | W500010 | Wheel speed sensor bolt |
| 11 | W709882 | Wheel knuckle-to-trailing arm bolts (4 required) |
