Wheel Bearing and Wheel Hub: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL DESCRIPTION

Front Hub Remover
205-D070 (D93P-1175-B) or equivalent

NOTE: All-Wheel Drive (AWD) shown in illustration, Front Wheel Drive (FWD) vehicles similar.

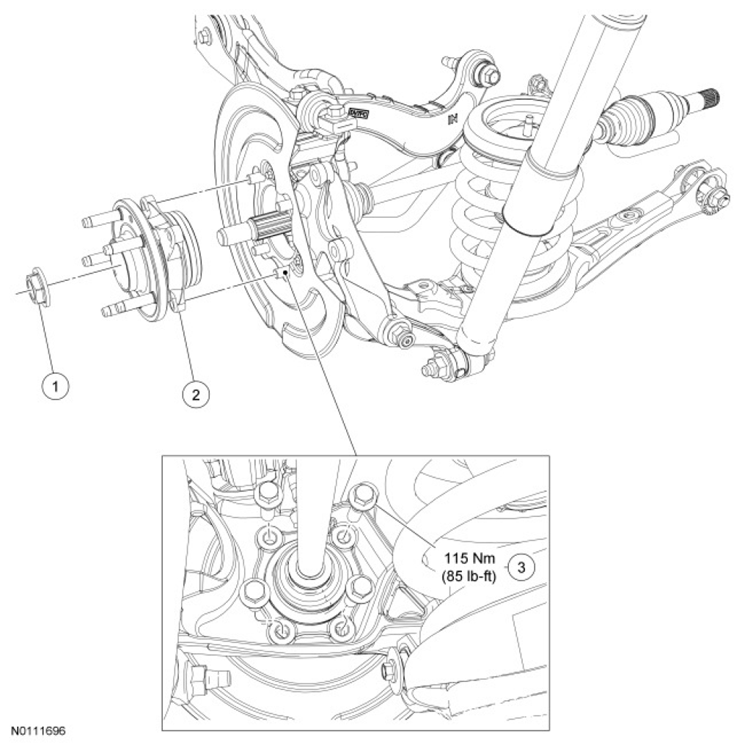

Fig 1: Exploded View Of Wheel Bearing And Wheel Hub With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712435	Wheel hub nut (AWD )
2	1104	Wheel hub and bearing assembly
3	W714794	Wheel hub and bearing bolt (4 required)
