Upper Arm: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Powertrain Lift 300-OTC1585AE or equivalent |
NOTE:

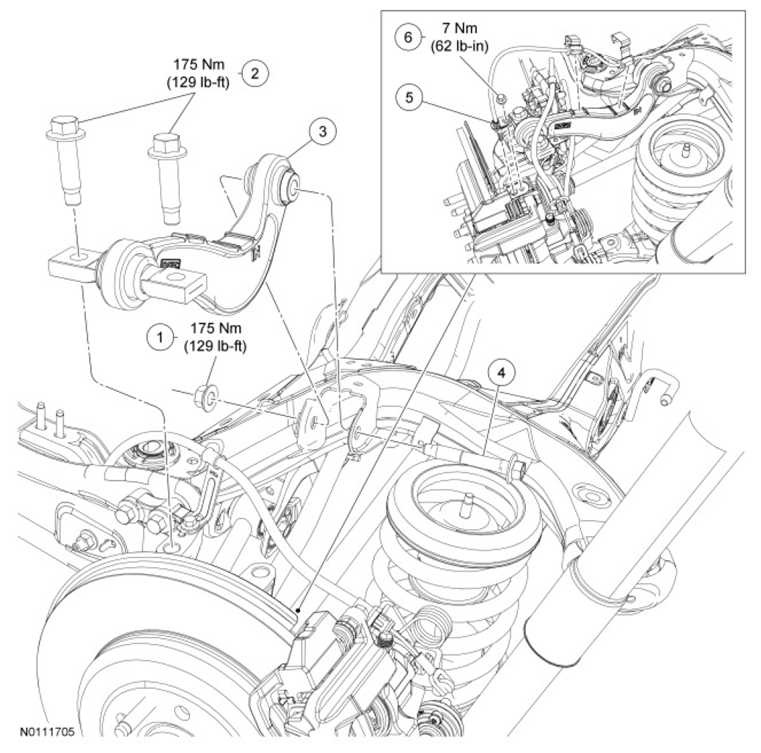

All-Wheel Drive (AWD) vehicle shown in illustration, Front Wheel Drive (FWD) vehicle similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520215 | Upper control arm inboard nut |
| 2 | W715259 | Upper control arm outboard bolts (2 required) |
| 3 | 5500 | Upper control arm |
| 4 | W500766 | Upper arm inboard bolt |
| 5 | 2C190 | Wheel speed sensor |
| 6 | W500010 | Wheel speed sensor bolt |
