Toe Link: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

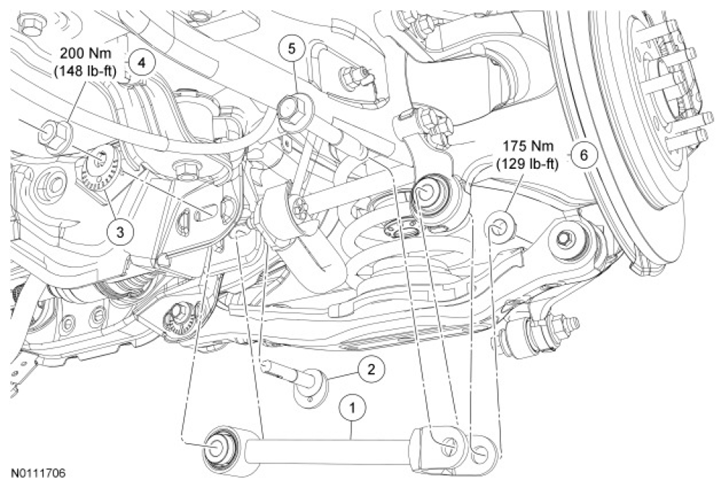

| Item | Part Number | Description |
|---|---|---|
| 1 | 5B674 | Toe link |
| 2 | 5K978 | Toe link inboard cam bolt |
| 3 | 5K751 | Toe link adjuster cam |
| 4 | W711798 | Toe link inboard nut |
| 5 | W711114 | Toe link outboard bolt |
| 6 | W520516 | Toe link outboard nut |
