Removal And Installation: Spring: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: All-Wheel Drive (AWD) vehicle shown in illustration, Front Wheel Drive (FWD) vehicle similar.

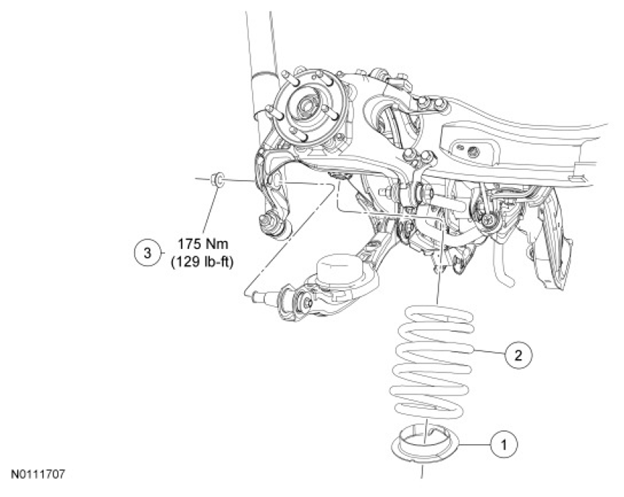

Fig 1: Spring, Lower Seat And Lower Arm Outboard Nut With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5793	Spring lower seat
2	5560	Spring
3	W520516	Lower arm outboard nut
