Lower Arm
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

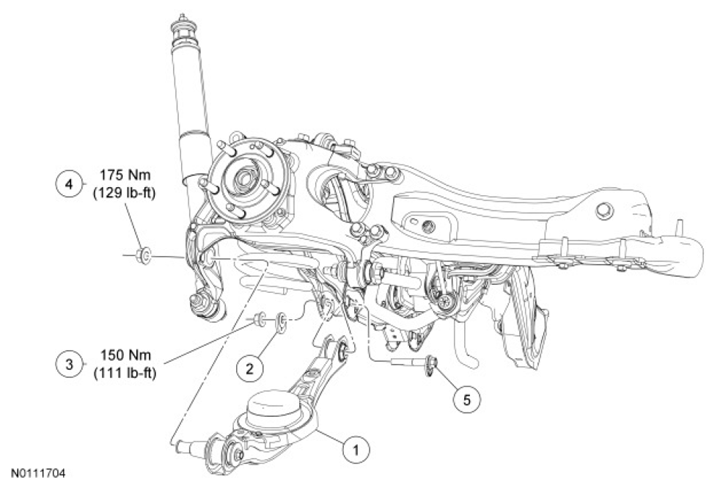

| Item | Part Number | Description |
|---|---|---|
| 1 | 5A648 RH/5A649 LH | Lower arm |
| 2 | 5K751 | Lower arm cam adjuster |
| 3 | W711798 | Lower arm cam adjuster nut |
| 4 | W520516 | Lower arm outboard nut |
| 5 | 5K978 | Lower arm cam adjuster bolt |
NOTE:
Suspension fasteners affect performance of vital components and systems and their failure may result in major service expense. If replacement is necessary install new parts with the same part numbers or equivalent part. Do not use a replacement part of lesser quality or substitute design. Tighten the fasteners to specification during reassembly.
NOTE:
Tighten the suspension bushing fasteners with the weight of the vehicle resting on the wheels and tires or incorrect clamp load and bushing damage may occur.
- Remove the spring. For additional information, refer to SPRING .
- Remove and discard the lower arm cam nut and bolt and remove the lower arm cam adjuster.
- To install, tighten the new lower arm cam adjuster nut to 150 Nm (111 lb-ft).
- To install, reverse the removal procedure.
- Check and if necessary adjust rear camber. Refer to SUSPENSION SYSTEM - GENERAL INFORMATION .
