Stabilizer Bar and Link: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Powertrain Lift 300OTC1585AE or equivalent |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

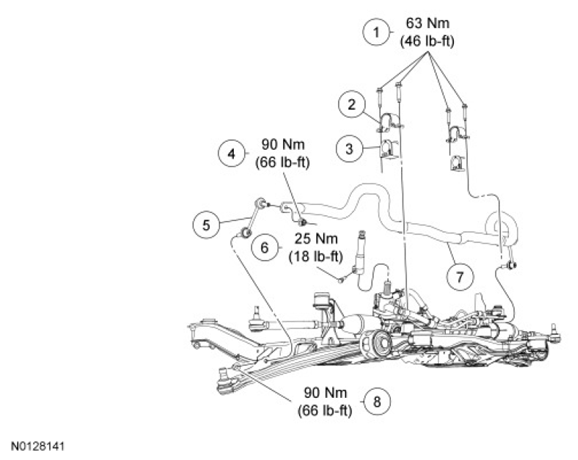

| Item | Part Number | Description |
|---|---|---|
| 1 | W712802 | Stabilizer bar bracket bolts (4 required) |
| 2 | 5486 | Stabilizer bar bracket (2 required) |
| 3 | 5484 | Stabilizer bar bushing (2 required) |
| 4 | W520214 | Stabilizer bar link upper nut (2 required) |
| 5 | 3B438 | Stabilizer bar link (2 required) |
| 6 | W712961 | Steering column shaft-to-steering gear bolt |
| 7 | 5494 | Stabilizer bar |
| 8 | W520214 | Stabilizer bar link lower nut (2 required) |

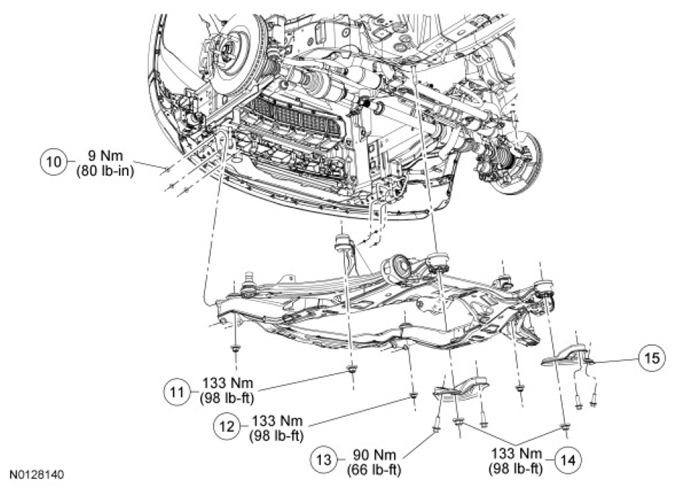

| Item | Part Number | Description |
|---|---|---|
| 10 | W708229 | Subframe-to-lower bumper nut (6 required) |
| 11 | W712858 | Middle subframe nut (2 required) |
| 12 | W712858 | Forward subframe nut (2 required) |
| 13 | W712733 | Subframe support bracket bolt (4 required) |
| 14 | W712858 | Subframe support bracket nuts (2 required) |
| 15 | 3B154 | Subframe support bracket (2 required) |
