Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

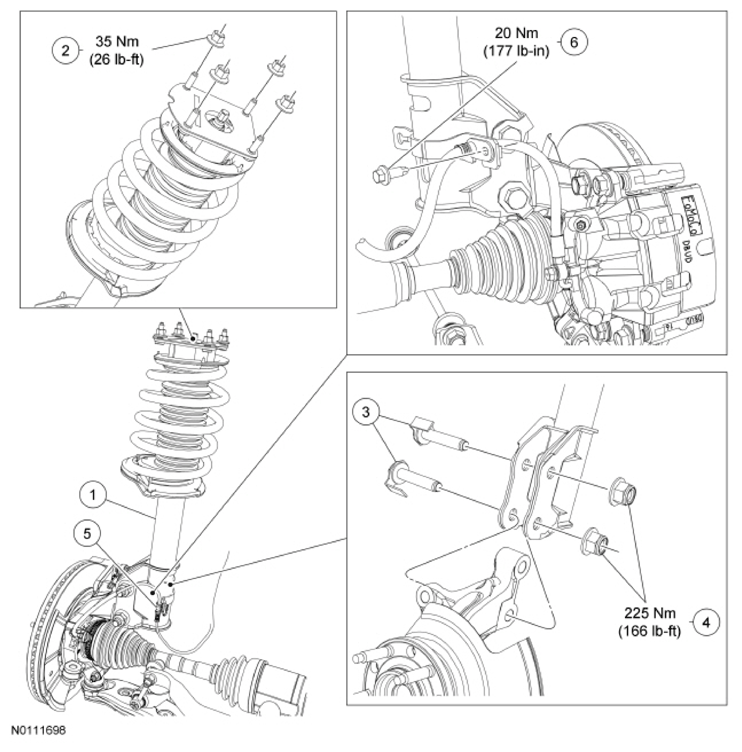

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Shock absorber and spring assembly |
| 2 | W704790 | Shock absorber upper mount nut (4 required) |
| 3 | W714965 | Shock absorber lower flag bolts (2 required) |
| 4 | W520216 | Shock absorber lower nuts (2 required) |
| 5 | - | Wheel speed sensor harness clip |
| 6 | W708004 | Brake flexible hose bracket bolt |
| 7 | 2078 | Brake flexible hose |
