Generator - 2.0L GTDI: Removal
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

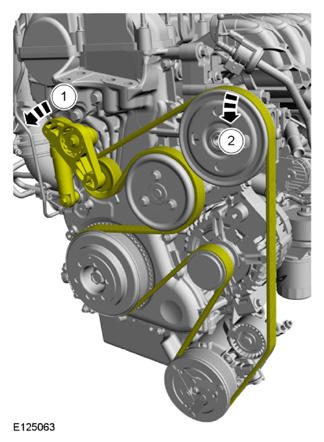

- Rotate the accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.
- Remove the upper Charge Air Cooler (CAC) pipe. For additional information, refer to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .

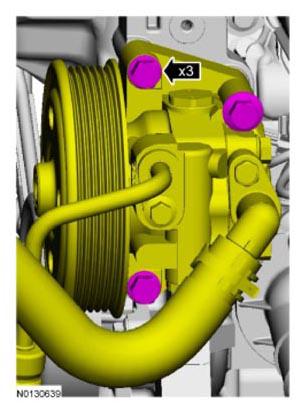

- Remove the 3 bolts and position the power steering pump aside.
- Disconnect the generator electrical connector and remove the nut.
- Remove the 3 bolts and the generator.
