3.7L LH Catalytic Converter and Exhaust Pipes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

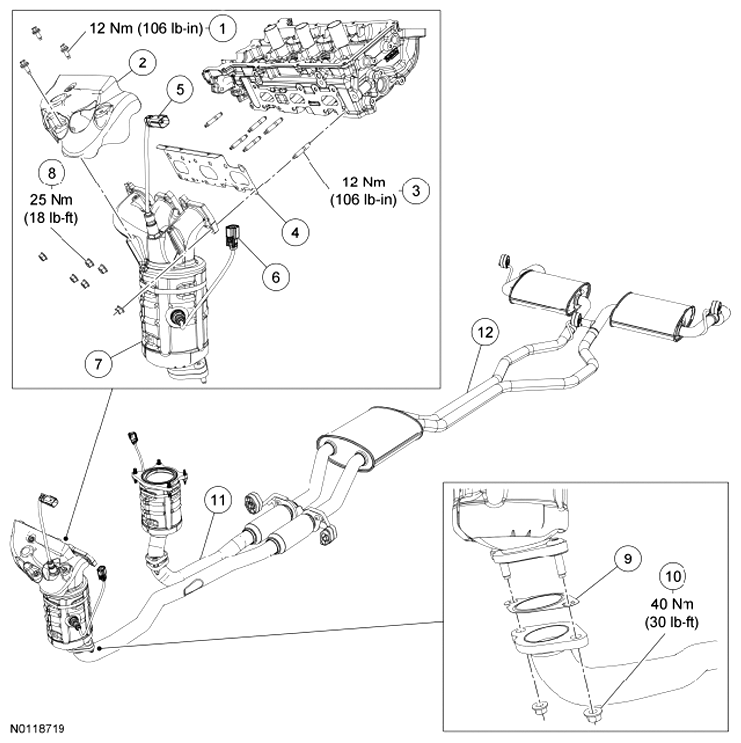

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 3.7L LH Catalytic Converter And Exhaust Pipes
| Item | Part Number | Description |
|---|---|---|
| 1 | W714133 | LH catalytic converter manifold heat shield bolt (3 required) |
| 2 | 9Y427 | LH catalytic converter manifold heat shield |
| 3 | W712244 | LH catalytic converter manifold-to-cylinder head stud (6 required) |
| 4 | 9448 | Gasket |
| 5 | - | LH Heated Oxygen Sensor (HO2S) electrical connector (part of 9F472) |
| 6 | - | LH Catalyst Monitor Sensor (CMS) electrical connector (part of 9G444) |
| 7 | 5G232 | LH catalytic converter manifold |
| 8 | W701706 | LH catalytic converter manifold-to-cylinder head nut (6 required) |
| 9 | 9450 | Gasket |
| 10 | W520414 | Exhaust Y-pipe-to-LH catalytic converter manifold nut (2 required) |
| 11 | 5G203 | Exhaust Y-pipe |
| 12 | 5230 | Muffler and tailpipe |
