3.5L RH Catalytic Converter and Exhaust Pipes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

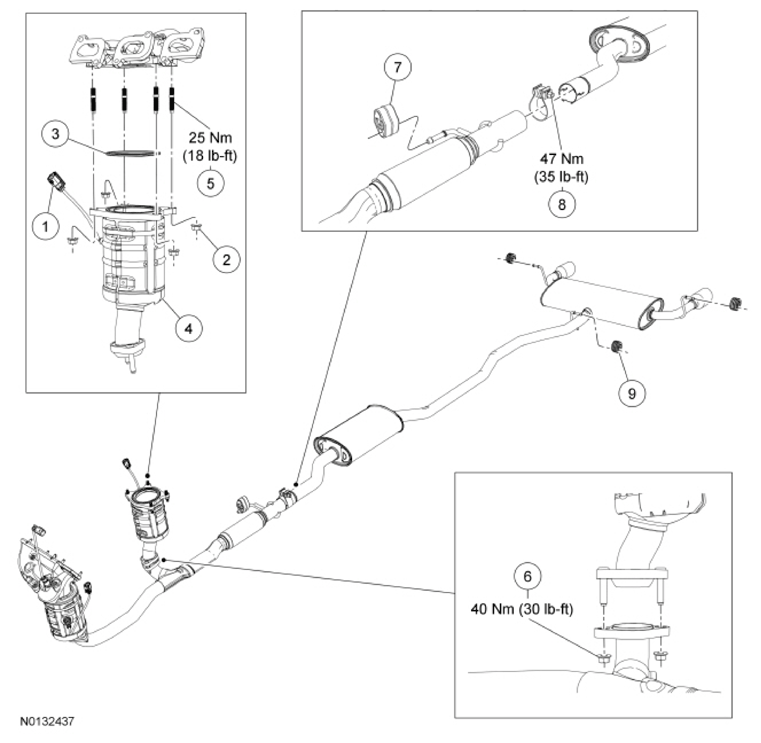

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 3.5L RH Catalytic Converter And Exhaust Pipes
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH Catalyst Monitor Sensor (CMS) electrical connector (part of 9G444) |
| 2 | W520414 | RH catalytic converter-to-exhaust manifold nut (4 required) |
| 3 | 5F263 | Gasket |
| 4 | 5E212 | RH catalytic converter |
| 5 | W712458 | RH catalytic converter-to-exhaust manifold stud (4 required) |
| 6 | W520414 | Exhaust Y-pipe-to-RH catalytic converter nut (2 required) |
| 7 | 5F262 | Exhaust Y-pipe isolator |
| 8 | 5221 | Torca® clamp |
| 9 | 5F262 | Muffler and tailpipe exhaust isolator (3 required) |
