Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

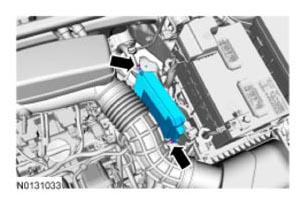

    • Tighten to 20 Nm (177 lb-in).
    G09296474
  2. NOTE: Keep the TCM  electrical connector straight when connecting it or damage the connector terminals can occur.
    G08030978
  3. Restore the module configuration. Carry out the module configuration restore steps of the PMI procedure. For additional information, refer to MODULE CONFIGURATION .
  4. Download the solenoid body strategy. For additional information, refer to SOLENOID BODY STRATEGY DOWNLOAD .
