Removal And Installation: Transaxle: Removal

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the ACL  and the outlet pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the battery and battery tray. Refer to BATTERY, MOUNTING AND CABLES .
  4. NOTE: Keep the TCM  electrical connector straight when disconnecting it or damage to the connector terminals can occur.
    G08980358
  5. G08980359
  6. G08980360
  7. G08031035
  8. G08661453
  9. Discard the specified component. Follow local disposal regulations.
    G08661576
  10. Visual check.

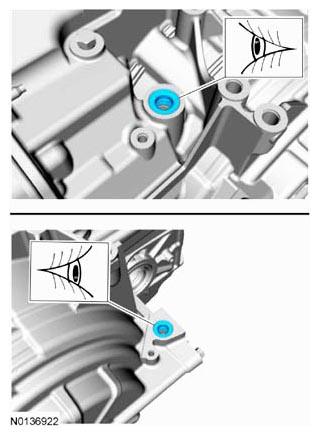

    G08661577
  11. G08614392
  12. G08614461
  13. Remove the starter. Refer to STARTING SYSTEM .
  14. G08614463
  15. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

    Marker. Turn the component CW through 45 degrees. Discard the specified component. Follow local disposal regulations.

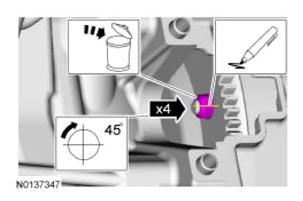

    G09296402
  16. Remove the subframe. Refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .
    G09296403
  17. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Drain the transmission fluid.

    G08031042
    • Tighten to 12 Nm (106 lb-in).
    G08031042
  19. G09294640
    • Relocate and support the component.

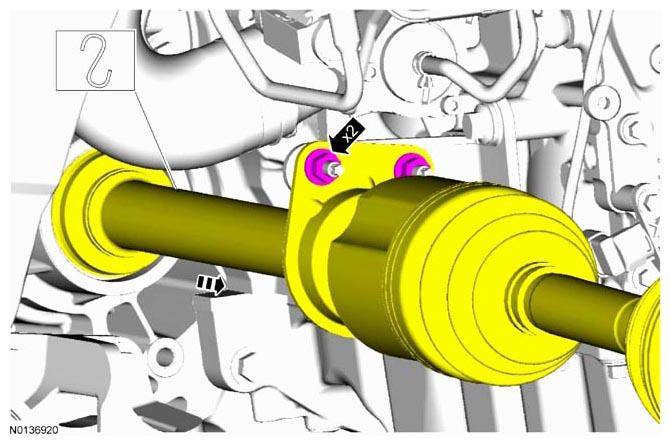

    G08661585

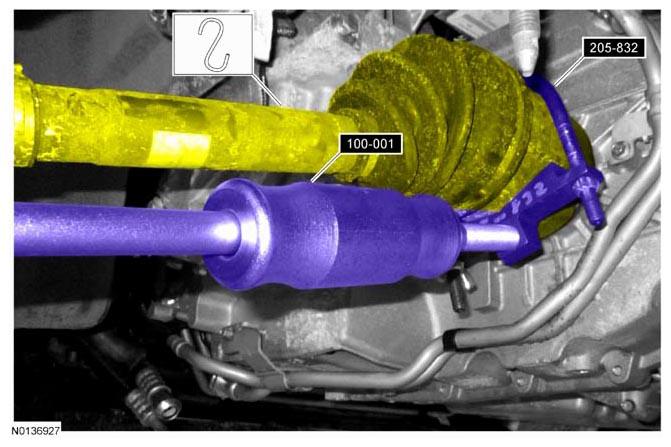

  21. Special Tool(s): Remover, Halfshaft 205-832, Slide Hammer 100-001 (T50T-100-A).
    • Relocate and support the component.
    G08661586
  22. G08661587
  23. Remove the catalytic converter. Refer to EXHAUST SYSTEM .
  24. G09296410
  25. Remove the cowl panel grille. Refer to FRONT END BODY PANELS .
  26. Special Tool(s): Support Bar, Engine 303-F072.
    G08030981

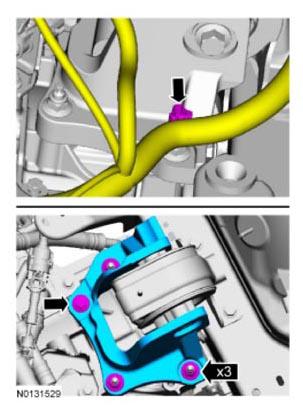

  27. G09294648
  28. G09296413
  29. Support the transmission with a transmission jack. Secure the transmission to the transmission jack with a safety strap.
  30. G08031052
  31. Special Tool(s): Retainer, Torque Converter 307-566.
    G08031053
  32. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning. Refer to TRANSAXLE/TRANSMISSION COOLING - 6F35 .
