Transaxle Case Bushing: Removal

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. G08030917
  2. Remove the front LH  halfshaft seal. For additional information, refer to HALFSHAFT SEAL - LH .

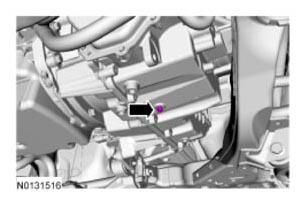

  3. NOTE: Leave the drain plug out after the transmission fluid drains. The drain plug will need to remain out to clean any debris from the damaged or worn bushing.

    Drain the transmission fluid.

    G09296446
  4. Special tool(s): Step Plate 205-D015 (D80L-630-4).
    G08614584
  5. Special tool(s): Remover, Transmission Extension Housing Bushing 308-070 (T77L-7697-E).
    G08031090
  6. Special tool(s): Step Plate 205-D015 (D80L-630-4).
G08614584
