Main Control Cover: Installation
WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the specified component with the specified material.
- Apply the substance from the specified tube.
Material: Ultra Silicone Sealant TA-29.
-

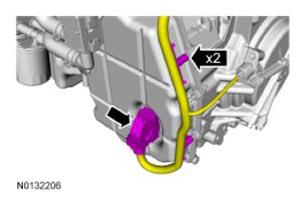

NOTE: Install the studbolts in the locations noted during disassembly.
- Tighten to 12 Nm (106 lb-in).
-
- Tighten to 12 Nm (106 lb-in).
- Install the ACL assembly. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
- Fill the transmission with transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
