Halfshaft Seal - RH: Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Special Tool(s): Installer, Axle Seal 307-718 and Handle 205-153 (T80T-4000-W).
    G09087841

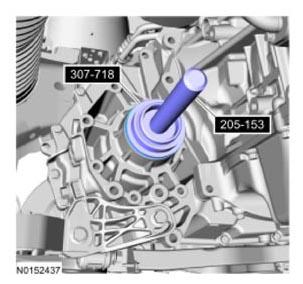

  2. Special Tool(s): Installer, Axle Seal 307-718 and Handle 205-153 (T80T-4000-W).
    G09296329
  3. Install the intermediate shaft. Refer to FRONT DRIVE HALFSHAFTS .
  4. Check and top off the transmission fluid to the correct level. Refer to TRANSMISSION FLUID LEVEL CHECK .
