Digital Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control cover. Refer to MAIN CONTROL COVER .
  2. G08030964
  3. G08614282
  4. G08030931
  5. G08030967
  6. NOTE: Do not drive the manual control shaft pin through the manual control shaft. The manual control shaft pin will contact the transmission case causing damage to the transmission case.

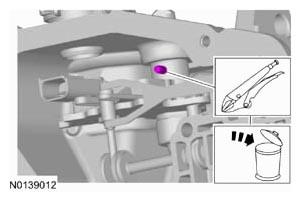

    Locking pliers. Discard the specified component. Follow local disposal regulations.

    G08661470
    1. Hold the TR  sensor in place and slide the manual shaft outward until the manual shaft is out of the transmission case.
    2. Remove the TR  sensor from the transmission, leaving the park pawl actuating rod attached to the TR  sensor.
      G08030969
