System Diagram

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

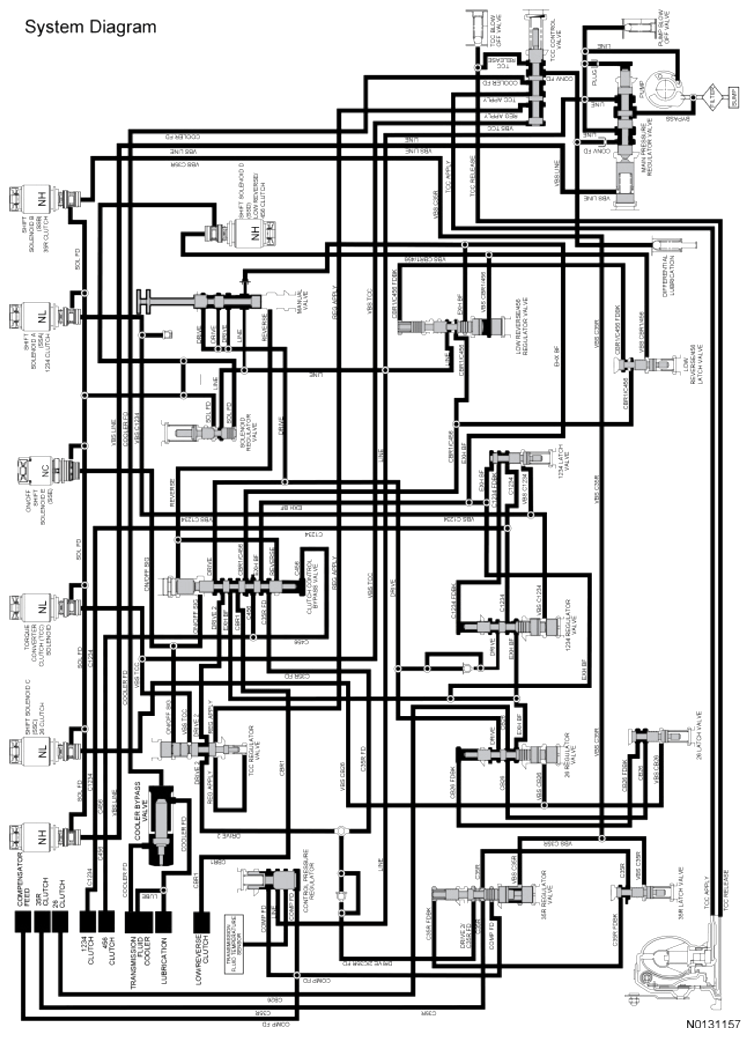

Fig 1: Hydraulic - System Diagram
G08030629Courtesy of FORD MOTOR CO.
