Removal And Installation: Transaxle: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

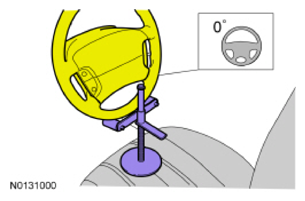

  2. NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may occur. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

    Steering wheel in straight ahead position.

    General equipment: Steering Wheel Holder.

    G09295632
  3. NOTE: It is not necessary to remove the ACL  outlet pipe from the ACL  . Remove the ACL  and the ACL  outlet pipe as an assembly.

    Remove the ACL  assembly and ACL  outlet pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .

  4. Remove the battery tray. Refer to BATTERY, MOUNTING AND CABLES .

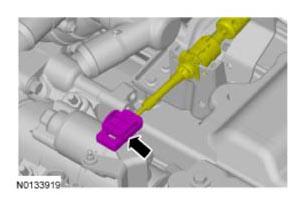

  5. G09295633

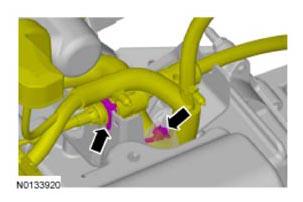

  6. G09295634

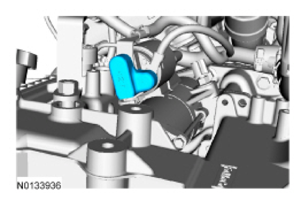

  7. G09295635

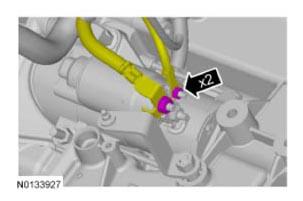

  8. G09295636

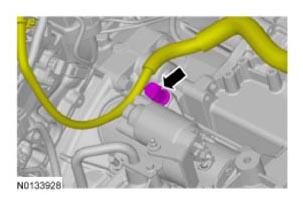

  9. G09295637

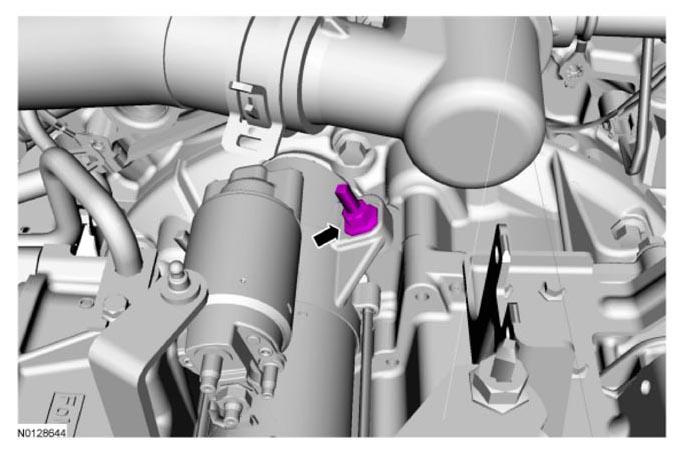

  10. G09295638

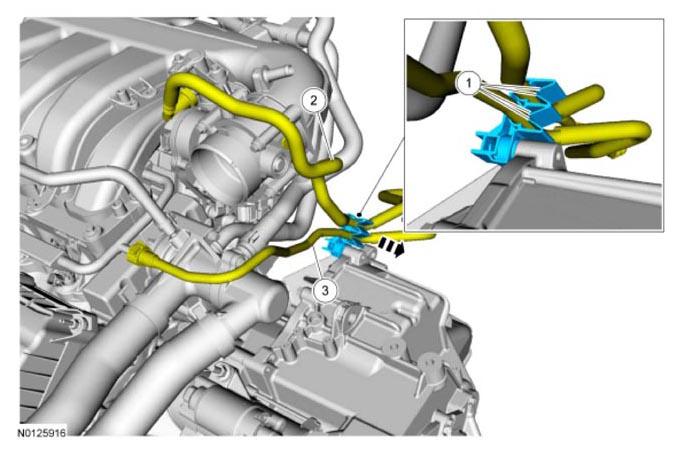

  11. NOTE: Do not use tools with sharp edges to remove the fuel supply tube or the fuel vapor tube from the retainer. Tools with sharp edges can damage the tubes causing a fuel leak.
    NOTE: Note the position and orientation of the fuel tubes in the retainer for assembly. The fuel vapor tube is in the top groove of the retainer and the fuel supply tube is in the bottom groove of the retainer.
    G09295639

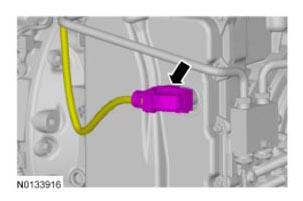

  12. G09295640

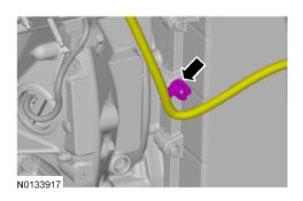

  13. G09295641

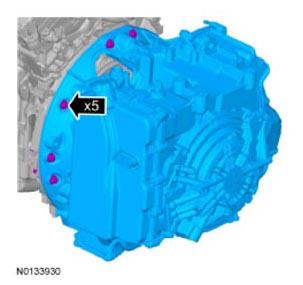

  14. G09295642

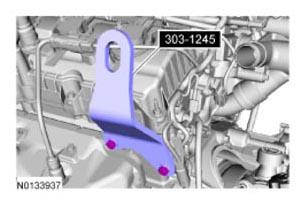

  15. Special Tool(s): Eye, Engine Lift 303-1245.
    G09295643
  16. Remove the upper intake manifold. Refer to ENGINE -3.5L .

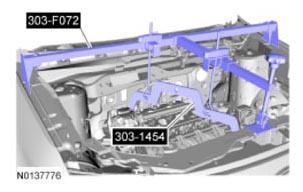

  17. Special Tool(s): Support Bar, Engine 303-F072, Bar, Engine Spreader 303-1454.
    G09295644

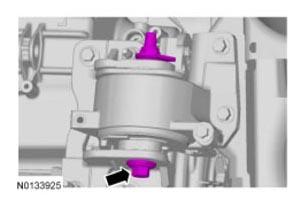

  18. G09295645

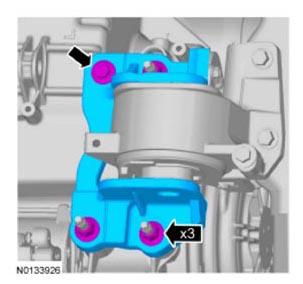

  19. G09295646
  20. Drain transmission fluid.
    G09295647
    • Tighten to 9 Nm (80 lb-in).
      G09295648

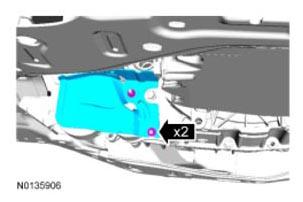

  22. G09295649

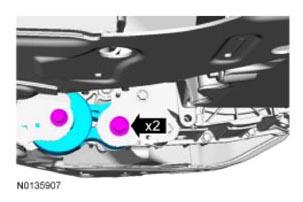

  23. G09295650
  24. Remove the subframe. Refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .
  25. NOTE: It is not necessary to separate the RH halfshaft from the intermediate shaft when removing the intermediate shaft. Remove the intermediate shaft and the RH halfshaft as an assembly.

    Remove the LH front halfshaft and the intermediate shaft. Refer to FRONT DRIVE HALFSHAFTS .

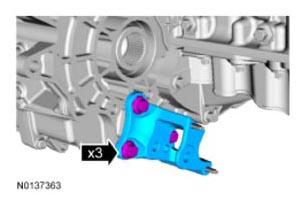

  26. G09295651

    AWD vehicles

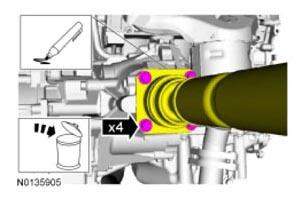

  27. Index-mark the driveshaft. Marker. Discard the specified component. Follow local disposal regulations.
    G09295652
  28. Remove the RH catalytic converter. Refer to EXHAUST SYSTEM .

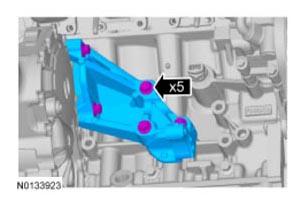

  29. G09295653

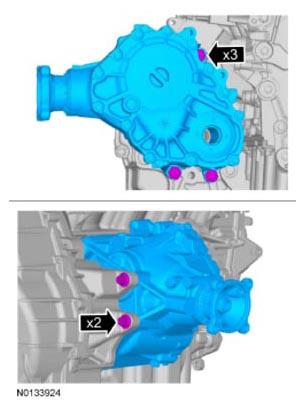

  30. G09295654

    All vehicles

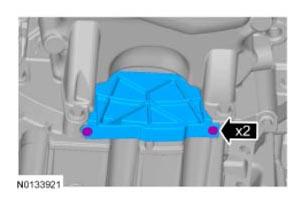

  31. G09295655

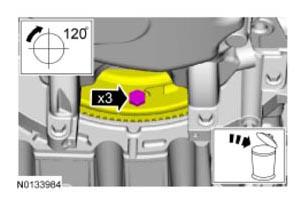

  32. Turn the component CW  120 degrees 3 times. Discard the specified component. Follow local disposal regulations.
    G09295656

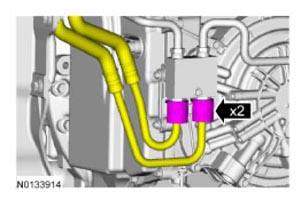

  33. G09295657

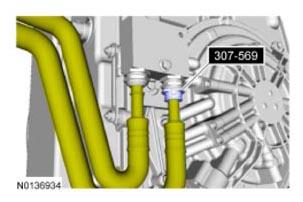

  34. Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
    G09295658

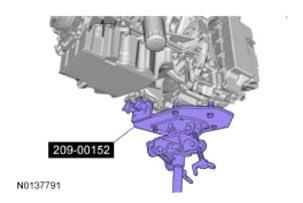

  35. Special Tool(s): Adapter, Transmission Jack 209-00152.

    General equipment: Transmission jack.

    G09295659

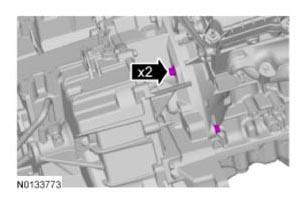

  36. G09295660

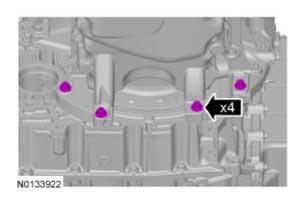

  37. G09295661
  38. Visual check.
    G09295662

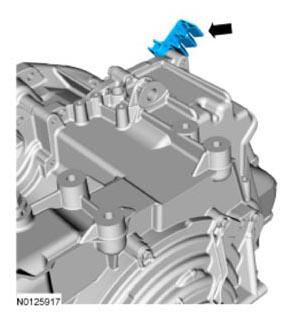

  39. G09295663
  40. G09295664

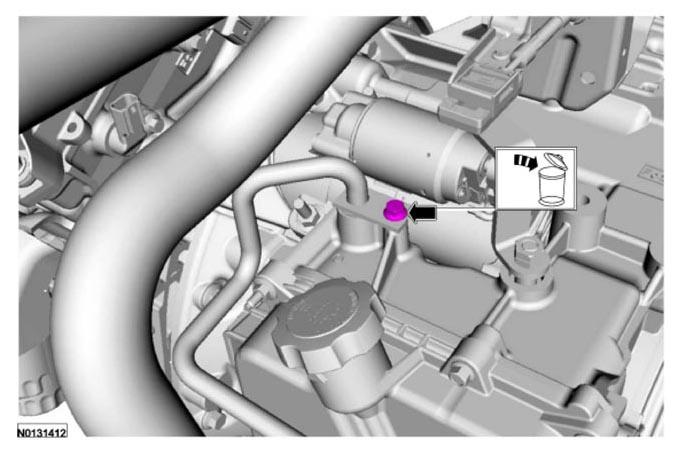

  41. Discard the specified component. Follow local disposal regulations.
    G09295665

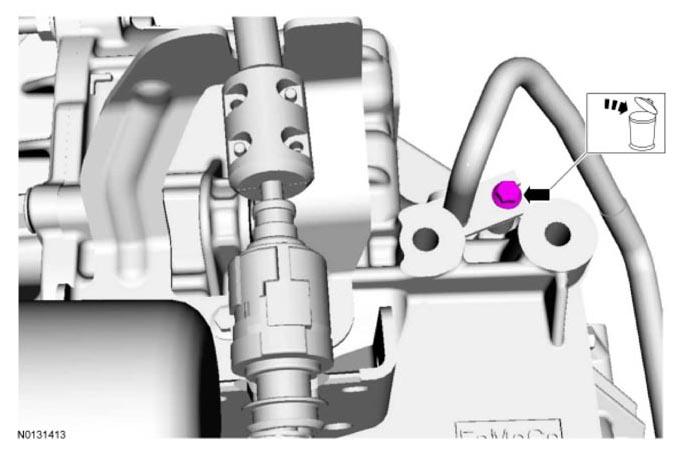

  42. Discard the specified component. Follow local disposal regulations.
    G09295666

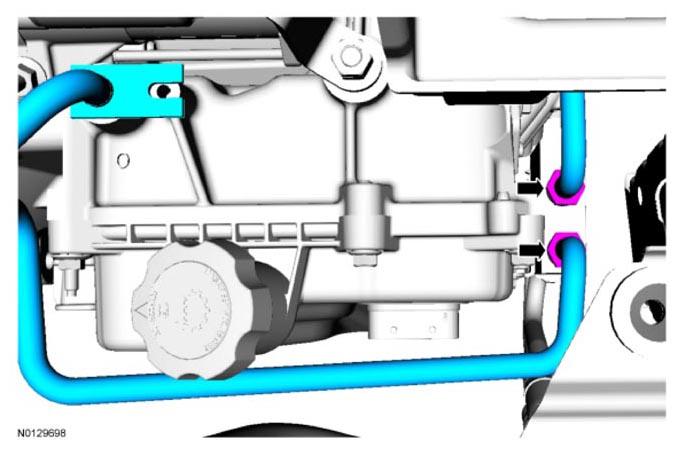

  43. G09295667

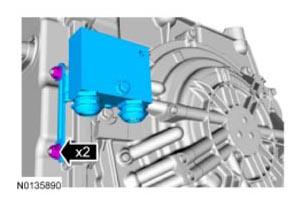

  44. G09295668

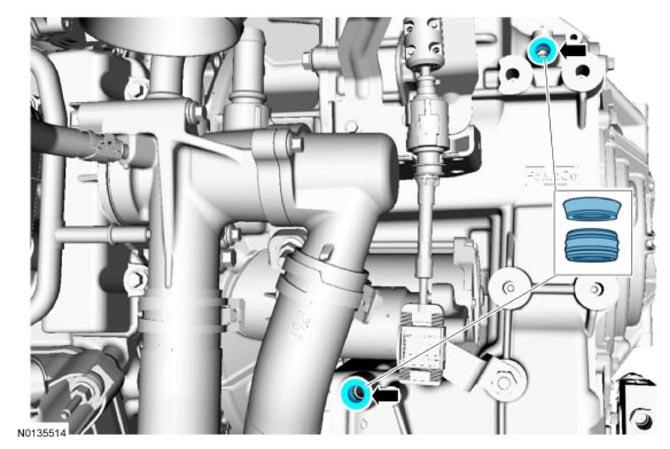

  45. G09295669
  46. If the transmission is to be overhauled or if installing a new transmission, carry out TRANSMISSION FLUID EXCHANGE . Refer to TRANSMISSION FLUID EXCHANGE .
