Halfshaft Seal - RH, Front Wheel Drive (FWD): Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING & LIFTING .
  2. Remove the RH front wheel and tire. REFER to WHEELS AND TIRES .
  3. Remove the RH halfshaft. REFER to FRONT DRIVE HALFSHAFTS .
  4. General equipment: Awl.
    G08412431

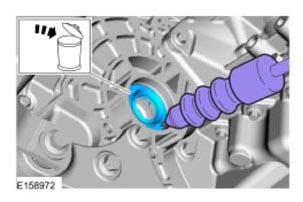

  5. General equipment: Dent puller.
    G09295581
