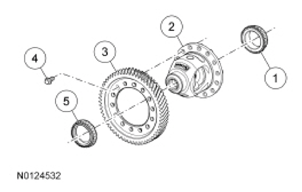

Exploded View

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
G09296032
Item Part Number Description
1 4221 Bearing
2 7F465 Differential case assembly
3 7F343 Differential ring gear
4 7J286 Bolt - M10 x 25
5 4221 Bearing
