Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: AWD  shown in illustration, FWD  similar.

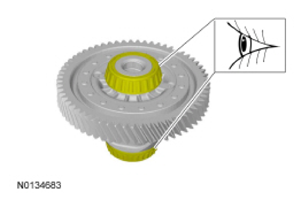

    Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

    G09296033
  2. Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8) (AWD  ) or Step Plate 205-D015 (D80L-630-4) (FWD  ).
    G09296034
  3. NOTE: AWD  shown in illustration, FWD  similar.

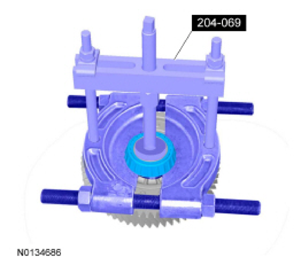

    Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8).

    G09296035
  4. NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.

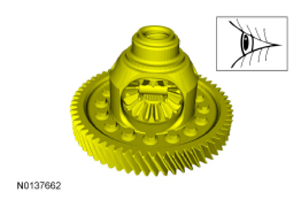

    Check the differential assembly and the ring gear for damage. Visual check.

    G09296036
  5. G09296037
  6. G09296038
