In-Vehicle Repair: Flexplate: Removal
WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Remove the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 6F35 .
-
NOTE: Do not reuse the flexplate bolts.

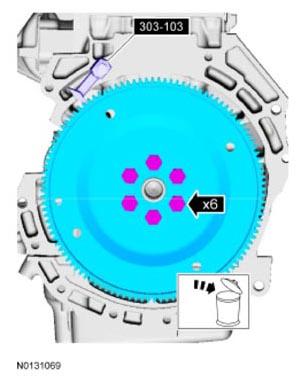

Install the Flywheel Holding Tool and remove the 6 bolts and the flexplate.
