Removal and Installation
WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Loosen the 4 retainers and remove the underbody shield.
-

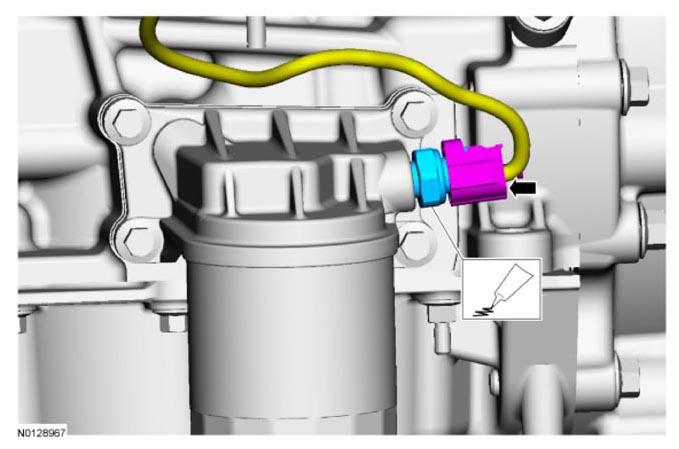

NOTE: Apply thread sealant to the EOP switch threads.
Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
- To install, reverse the removal procedure.
