Removal and Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the degas bottle. For additional information, refer to ENGINE COOLING .
  3. Loosen the 4 retainers and remove the underbody shield.
    G08030917
  4. Detach the wiring harness retainer from the valve cover stud bolt.
    G09294479

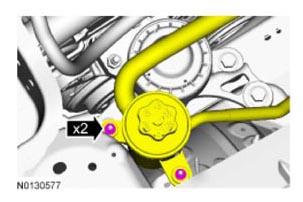

  5. Remove the 2 nuts and position the power steering reservoir aside.
    • To install, tighten to 8 Nm (71 lb-in).
      G09294480
  6. Using a floor jack and a wooden block, support the engine.
    G07978392
  7. Remove the 4 nuts, the 3 bolts and the engine mount.
    • To install, tighten to 90 Nm (66 lb-ft).
      G09294482
  8. To install, reverse the removal procedure.
