Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the diamond washer.
    G08028562
  2. NOTE: Apply clean engine oil on the seal contact area before installing.

    Position the crankshaft pulley onto the crankshaft and align the TDC  marked tooth on the crankshaft pulley with the center line of the Crankshaft Position (CKP) sensor.

    G08028563
  3. Install the Crankshaft Sensor Alignment Tool onto the TDC  marked tooth on the crankshaft pulley.
    • Install a new crankshaft pulley bolt and washer and tighten to 20 Nm (177 lb-in).
    • Remove the Crankshaft Sensor Alignment Tool.
      G08028564
  4. NOTE: The crankshaft must remain in the Top Dead Center (TDC) position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be installed using hand tools only.

    Use the Strap Wrench to hold the crankshaft pulley, tighten the crankshaft pulley bolt in 2 stages:

    • Stage 1: Tighten to 100 Nm (74 lb-ft).
    • Stage 2: Tighten an additional 90 degrees (one-fourth turn).
      G08028565
  5. Remove the Crankshaft TDC  Timing Peg.
    G08030564
  6. Remove the Camshaft Alignment Tool.
    G08028559
  7. NOTE: Only turn the engine in the normal direction of rotation.

    Turn the crankshaft clockwise one and three-fourths turns.

  8. Install the Crankshaft TDC  Timing Peg.
    G08030564
  9. NOTE: The engine front cover is shown in illustration removed in graphic for clarity.

    Rotate the crankshaft slowly clockwise until the crankshaft contacts the Crankshaft TDC  Timing Peg.

    • The TDC  marked tooth on the crankshaft pulley will align with the center line of the Crankshaft Position (CKP) sensor.
      G08030565
  10. Install the Camshaft Alignment Tool to check the position of the camshaft.
    • If it is not possible to install the Camshaft Alignment Tool, the engine valve timing must be corrected by repeating this procedure.
      G08028559
  11. Install the Crankshaft Sensor Alignment Tool.
    • If the Crankshaft Sensor Alignment Tool does not align with the Top Dead Center (TDC) marked tooth on the crankshaft pulley, loosen the 2 CKP  sensor bolts and adjust the sensor until the tool is installed.
      • Tighten the 2 Crankshaft Position (CKP) sensor bolts to 7 Nm (62 lb-in).
    • Remove the Crankshaft Sensor Alignment Tool.
      G08028571
  12. Remove the Camshaft Alignment Tool.
    G08028559
  13. Remove the Crankshaft TDC  Timing Peg.
    G08030564
  14. Install the engine plug bolt.
    • Tighten to 20 Nm (177 lb-in).
      G08030563
  15. Install the RH halfshaft bracket, the 2 bolts and the 2 nuts.
    • Tighten to 25 Nm (18 lb-ft).
      G08030562
  16. Using a wrench on the flats of the intake camshaft to prevent cam rotation, install the brake vacuum pump adapter.
    • Tighten to 63 Nm (46 lb-ft).

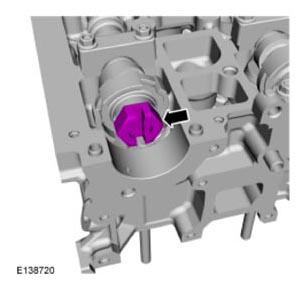

      G09294416
  17. NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of Gasket Maker application. If the bearing cap is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

    Apply 1 mm (0.039 in) beads of Gasket Maker to the intake rear camshaft bearing cap mating surface as shown in illustration.

    G08028577
  18. NOTE: Wipe off any excess sealer from the vacuum pump sealing surface of the cylinder head and camshaft cap.

    Install the rear intake camshaft cap and the 2 bolts. Tighten the bolts in 2 stages:

    • Stage 1: Tighten the bolts to 7 Nm (62 lb-in).
    • Stage 2: Tighten the bolts to 16 Nm (142 lb-in).

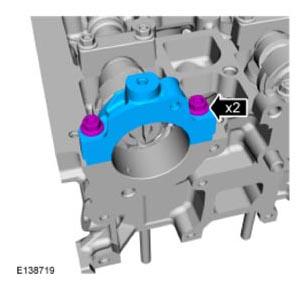

      G09294418
  19. Install the valve cover. For additional information, refer to VALVE COVER  .
  20. Install the brake vacuum pump. For additional information, refer to POWER BRAKE ACTUATION .
  21. Rotate the accessory drive belt tensioner counterclockwise and install the accessory drive belt onto the crankshaft pulley.

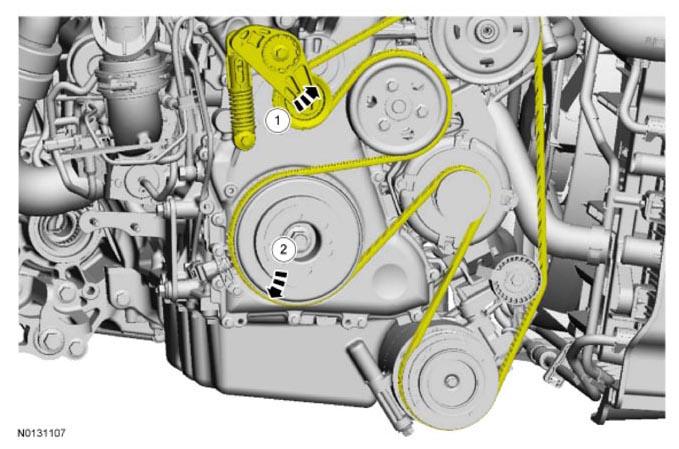

    G09294419
  22. Install the underbody shield and tighten the 4 retainers.
    G08030917
  23. Install the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
  24. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
