Oil Pump Screen and Pickup Tube: Removal
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

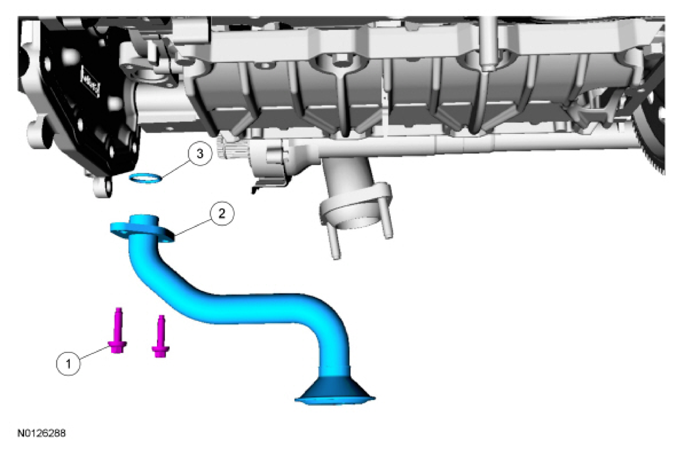

| Item | Part Number | Description |
|---|---|---|
| 1 | W503278 | Oil pump screen and pickup tube bolt (2 required) - 10 Nm (89 lb-in) |
| 2 | 6622 | Oil pump screen and pickup tube |
| 3 | 6625 | O-ring seal |
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
- Remove the oil pan. For additional information, refer to OIL PAN .
- Remove the 2 bolts and the oil pump screen and pickup tube.
- Discard the O-ring seal.
