Oil Pan: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All Vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the ACL  assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Remove the oil level indicator.
    G08028905
  5. Detach the wiring harness retainer from the starter stud bolt.
    • Remove the starter stud bolt.
      G07997755
  6. Loosen the 3 upper bellhousing-to-engine bolts 5 mm (0.19 in).
    G07997756
  7. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
      G08621662
  8. Remove and discard the engine oil filter.
    G09066251
  9. Remove the engine roll restrictor. For additional information refer to AUTOMATIC TRANSMISSION - 6F50/6F55 .

    AWD vehicles

  10. Remove the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  11. Remove the RH wheel and tire. For additional information, refer to WHEELS AND TIRES .
  12. Remove the 2 intermediate shaft support bolts, the 5 PTU  support bracket bolts and the PTU  support bracket.
    G09292039

    All vehicles

  13. NOTE: It may be necessary to roll the bottom of the engine back for the A/C  compressor stud to clear the subframe.

    Remove the A/C  compressor nut and stud.

    G07997759
  14. Loosen the 3 LH bellhousing-to-engine bolts 5 mm (0.19 in).
    G07998850
  15. NOTE: AWD  vehicle shown in illustration, FWD  similar. Parts removed from graphic for clarity.

    Loosen the RH engine-to-bellhousing bolt 5 mm (0.19 in).

    G07997761

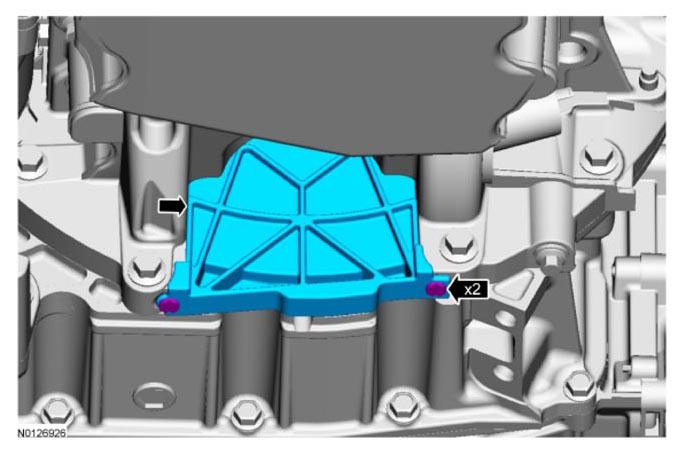

  16. Remove the 2 fasteners and the inspection cover.
    G09293271
  17. Remove the 4 oil pan-to-bellhousing bolts.
    G07998853
  18. Separate the engine and transaxle 5 mm (0.19 in).
    G07998854
  19. Remove the 4 lower engine front cover bolts.
    G08621802
  20. Remove the 16 oil pan bolts.
    G08621803
  21. Using a suitable pry tool, locate the pry pads and pry the oil pan loose and remove.
    G08621804
  22. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    Clean the engine oil pan using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm.

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
  23. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder block and engine front cover in the following sequence.

    1. Remove any large deposits of silicone or gasket material.
    2. Apply silicone gasket remover and allow to set for several minutes.
    3. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep to remove any remaining traces of oil and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
