Engine Front Cover: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Recover the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
  3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Remove the engine appearance cover. For additional information, refer to ENGINE APPEARANCE COVER - EXPLODED VIEW  .
  5. Remove the accessory drive belt, tensioner and the power steering belt. For additional information, refer to ACCESSORY DRIVE .
  6. Using the Strap Wrench, remove the crankshaft pulley bolt and washer.
    • Discard the bolt.
      Fig 1: Locating Crankshaft Bolt And Washer
      G09291954Courtesy of FORD MOTOR CO.
  7. Using the 3 Jaw Puller, remove the crankshaft pulley.
    Fig 2: Removing Crankshaft Pulley Using Jaw Puller
    G09291955Courtesy of FORD MOTOR CO.
  8. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
    Fig 3: Removing Crankshaft Front Seal Using Oil Seal Remover
    G07997630Courtesy of FORD MOTOR CO.
  9. Remove the 2 nuts and the roll restrictor heat shield.
    G09293185
  10. Loosen the 2 roll restrictor through bolts.
    G09291958
  11. Remove the RH front halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  12. Remove the 2 lower power steering pump bolts.
    G09291996
  13. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
  14. If equipped, detach the engine block heater harness from the radiator support, the A/C suction tube and the engine wiring harness.
    Fig 4: Locating Engine Block Heater Harness, Radiator Support, A/C Suction Tube And Engine Wiring Harness
    G06501036Courtesy of FORD MOTOR CO.
  15. Remove the engine Air Cleaner (ACL) and ACL  outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  16. Remove the LH and RH valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH  .
  17. Remove the bolt and detach the A/C suction tube.
    G09291961
  18. Remove the safety clip and disconnect the A/C suction tube fitting.
    • Remove the A/C suction tube.
    • Discard the O-ring seal.
      Fig 5: Locating Safety Clip And A/C Suction Tube Fitting
      G06501037Courtesy of FORD MOTOR CO.
  19. Remove the A/C pressure tube bracket bolt.
    Fig 6: Locating A/C Pressure Tube Bracket Bolt
    G09292005Courtesy of FORD MOTOR CO.
  20. Remove the nut and disconnect the A/C pressure tube fitting.
    • Discard the O-ring seal.
    • Position the A/C pressure tube aside.
      Fig 7: Locating A/C Pressure Tube Aside O-Ring Seal
      G09291964Courtesy of FORD MOTOR CO.
  21. Remove the bolt and the ground wire from the engine front cover.
    G09291965
  22. Remove the nut and the radio interference capacitor wire from the engine front cover stud.
    G09291966
  23. Disconnect the PCM electrical connector and position the wiring harness aside.
    G09291967
  24. Remove the 3 bolts and position the degas bottle aside.
    Fig 8: Locating Bolts And Degas Bottle
    G06501046Courtesy of FORD MOTOR CO.
  25. NOTE: The area between the front of the engine and the body of the vehicle must be unobstructed in order to properly remove and install the engine front cover.

    Remove the 2 power steering reservoir nuts.

    • Support the power steering reservoir and hose away from the front of the engine with a length of mechanic's wire.
      Fig 9: Locating Power Steering Reservoir Nuts
      G06501047Courtesy of FORD MOTOR CO.
  26. Remove the top power steering pump bolt.
    • Support the power steering pump and hose away from the front of the engine with a length of mechanic's wire.
      G09291970

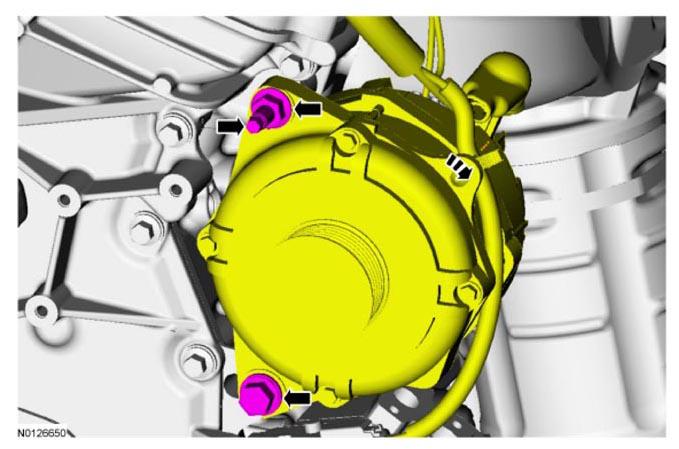

  27. Remove the generator nut and stud.
    • Loosen the bolt and position the generator aside.
      G09291971

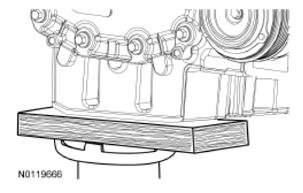

  28. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

    Position a floor jack with a block of wood under the front of the oil pan.

    Fig 10: Positioning Floor Jack
    G09293200Courtesy of FORD MOTOR CO.
  29. NOTE: The transaxle through bolt must be loosened prior to removing the engine mount and lowering the front of the engine. Failure to follow these instructions may cause internal damage to the hydraulic transaxle mount and possible fluid leakage.

    Loosen the transaxle mount through bolt.

    Fig 11: Locating Transaxle Mount Through Bolt
    G06501051Courtesy of FORD MOTOR CO.
  30. Remove the nut, bolt and engine mount brace.
    Fig 12: Locating Nut, Bolt And Engine Mount Brace
    G09291974Courtesy of FORD MOTOR CO.
  31. Remove the 4 engine mount nuts.
    G09291975
  32. Remove the 3 bolts and the engine mount.
    G09291976
  33. Remove the 2 bolts and the engine mount bracket.
    Fig 13: Locating Engine Mount Bracket And Bolts
    G07997664Courtesy of FORD MOTOR CO.
  34. NOTE: Do not allow the A/C compressor to contact the subframe. Failure to follow this direction may result in damage to the A/C compressor.

    Using the floor jack, lower the engine to access the lower engine front cover bolt.

    • Remove the lower M10 engine front cover bolt.
      G08028967
  35. Using the floor jack, raise the engine 100 mm (3.937 in).
  36. Remove the 2 M10 engine front cover bolts.
    G08028968

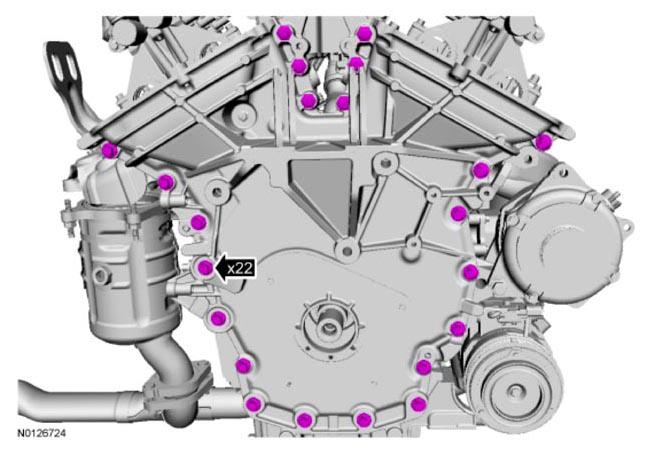

  37. Remove the 22 M8 engine front cover bolts.
    G09291980
  38. Remove the M6 engine front cover bolt.
    G08028970
  39. Using a suitable pry tool, locate the 7 pry pads shown in illustration and pry the engine front cover loose and remove.
    G08028971
