Mechanical Procedures
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Illustrations in this service information may be used instead of written step instructions. Color-coding (see color scheme in chart in illustration) is used to communicate the required step action or actions. Service action icons may be used to add information regarding the required action. Refer to SYMBOLS GLOSSARY .

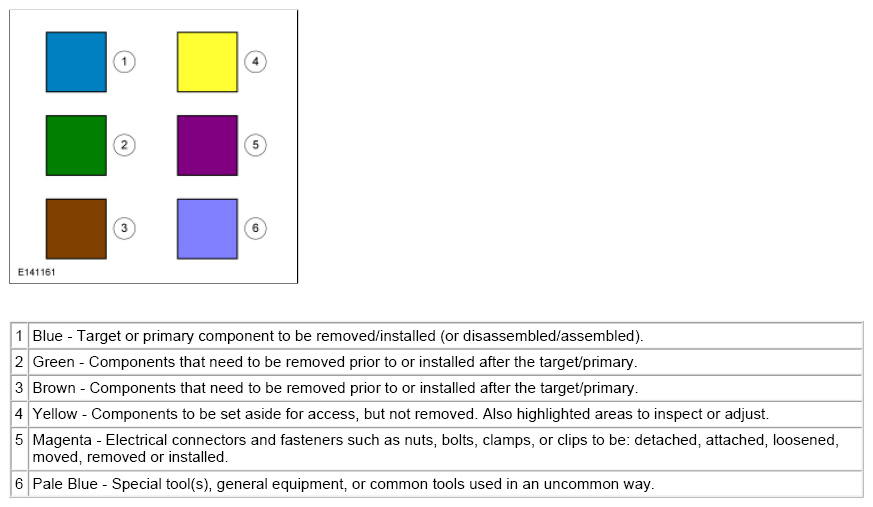

Illustration Color-coding
Other color-coding
- Alternating Blue and White
- Chemical, adhesive or sealer apply areas
- Red
- Sectioned or cut-away areas
- Grey
- Background components shown for location information
