LH (left-hand) and RH (right-hand) Designations

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All LH and RH vehicle designations are oriented from the driver's seat position looking forward.

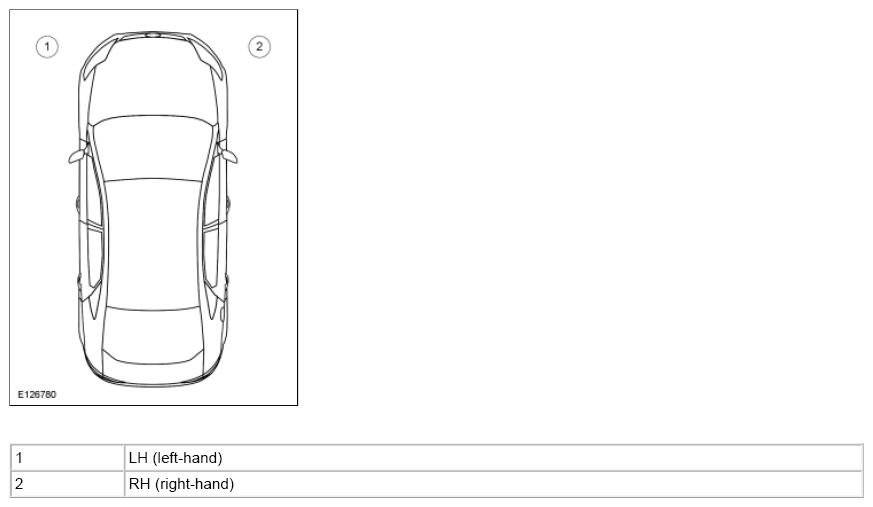

Vehicle LH and RH definition

Fig 1: Identifying Vehicle LH And RH
G09291244Courtesy of FORD MOTOR CO.

All LH and RH engine designations are oriented from the flywheel position looking toward the crankshaft pulley.

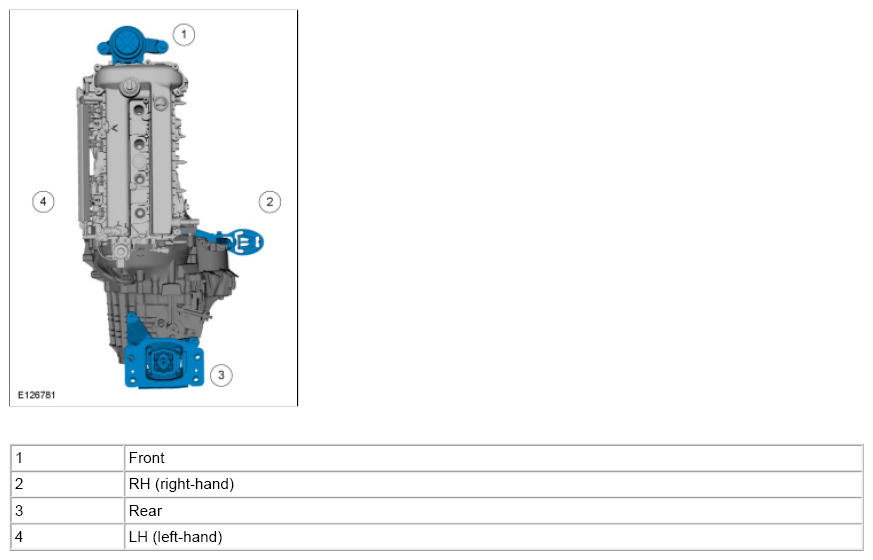

Powertrain LH and RH definition

G09291245
