Turn SINGH Stop Hazard Lamps: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

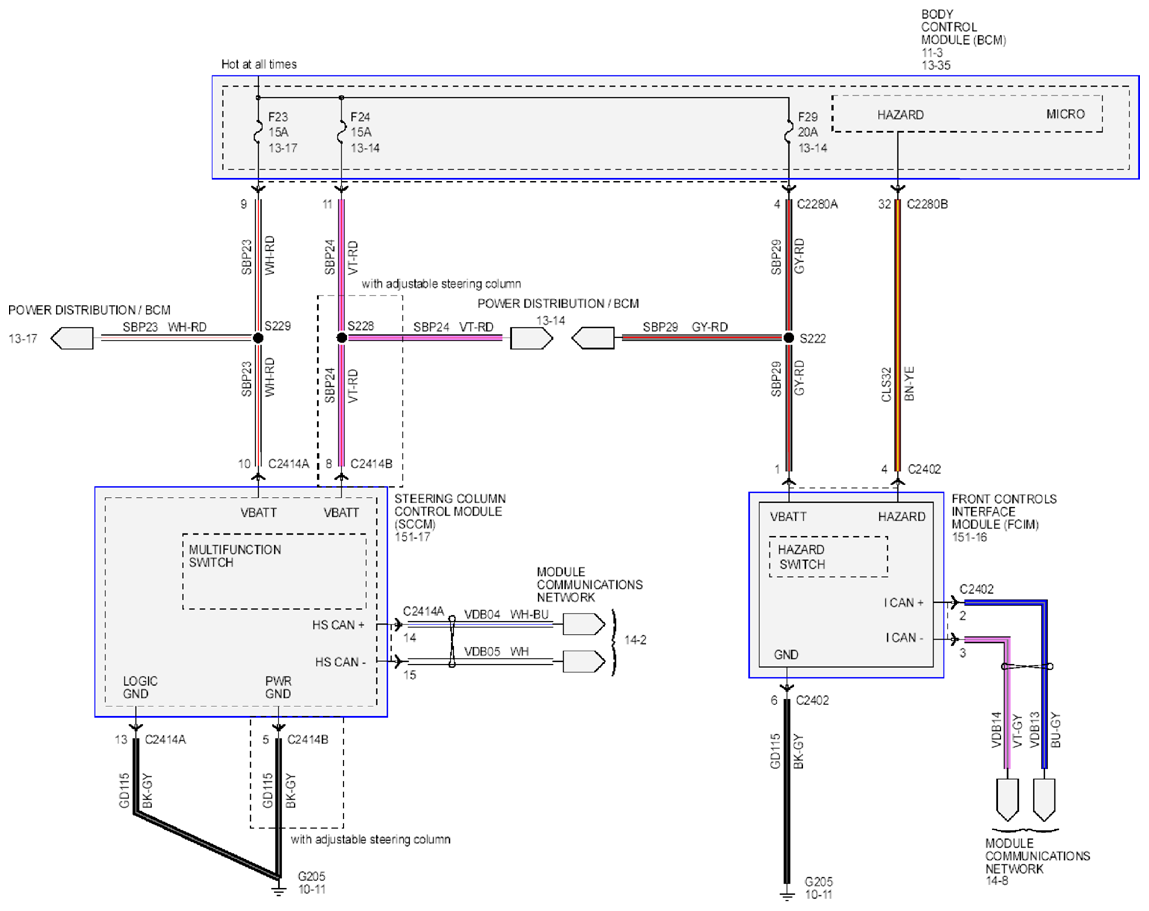

Fig 3: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
