Turn SINGH Stop Hazard Lamps: MKX

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

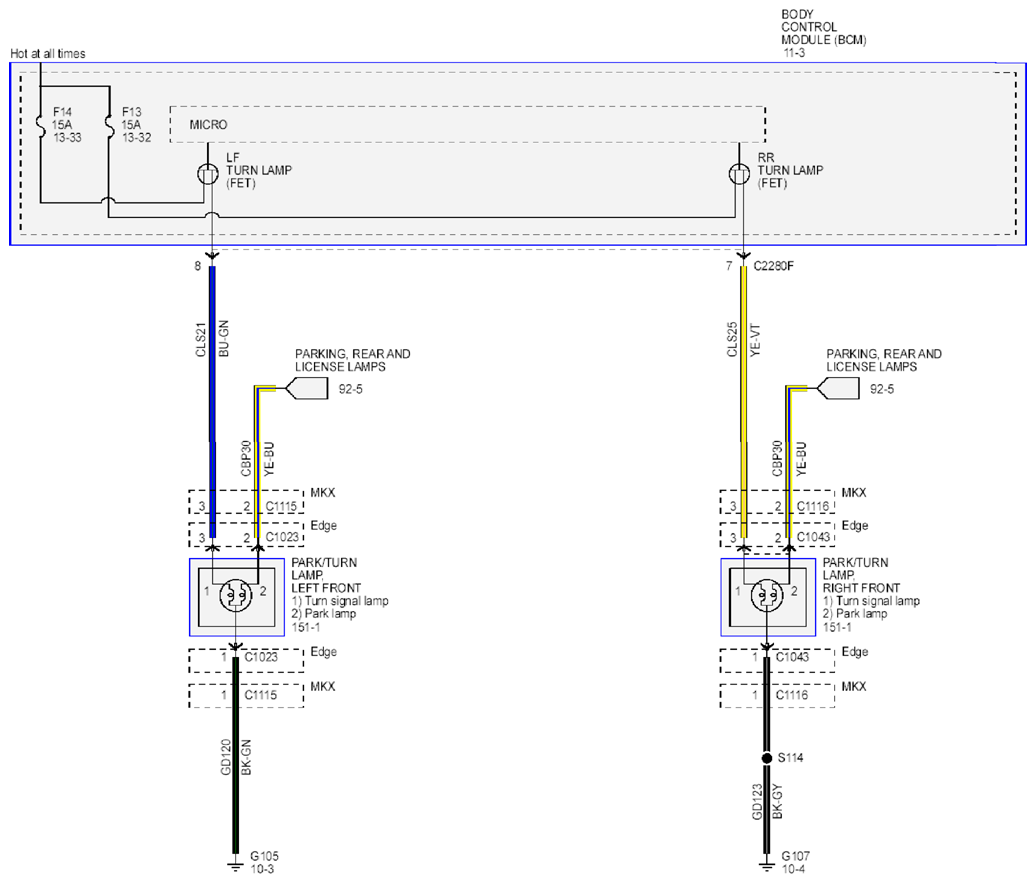

Fig 1: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (MKX; 1 Of 3)

Courtesy of FORD MOTOR CO.

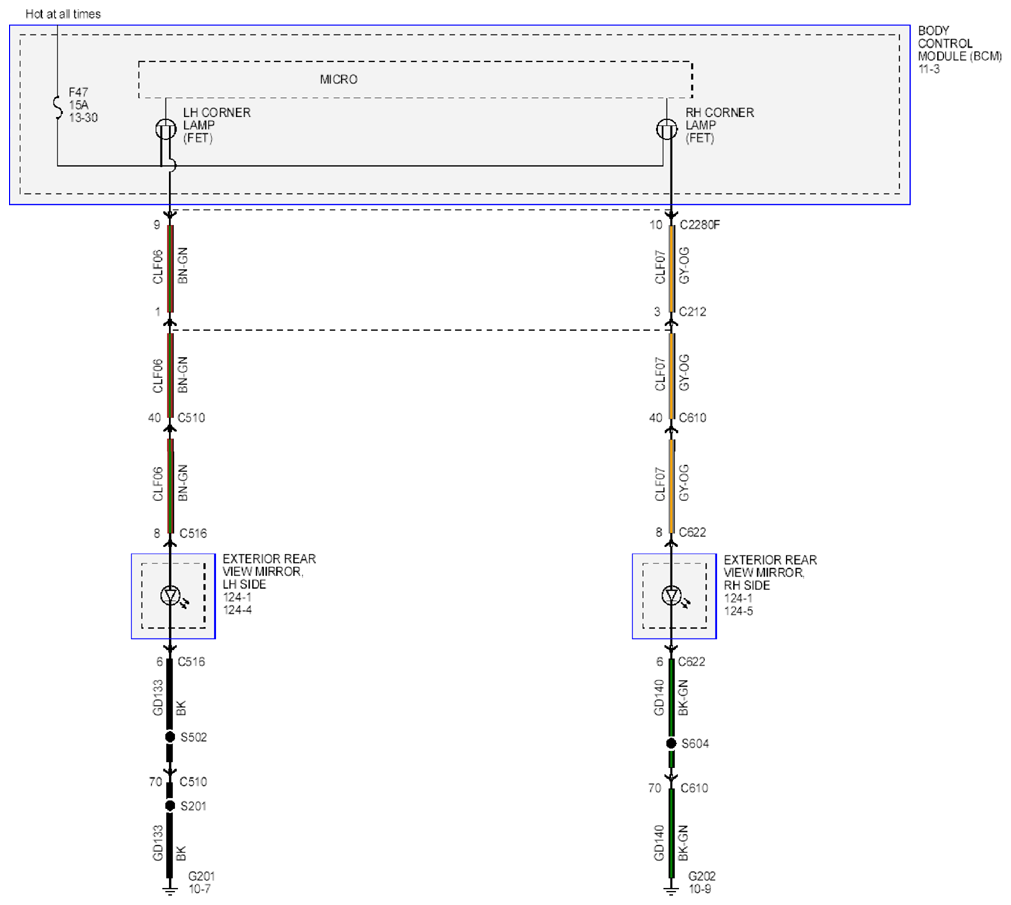

Fig 2: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (MKX; 2 Of 3)

Courtesy of FORD MOTOR CO.

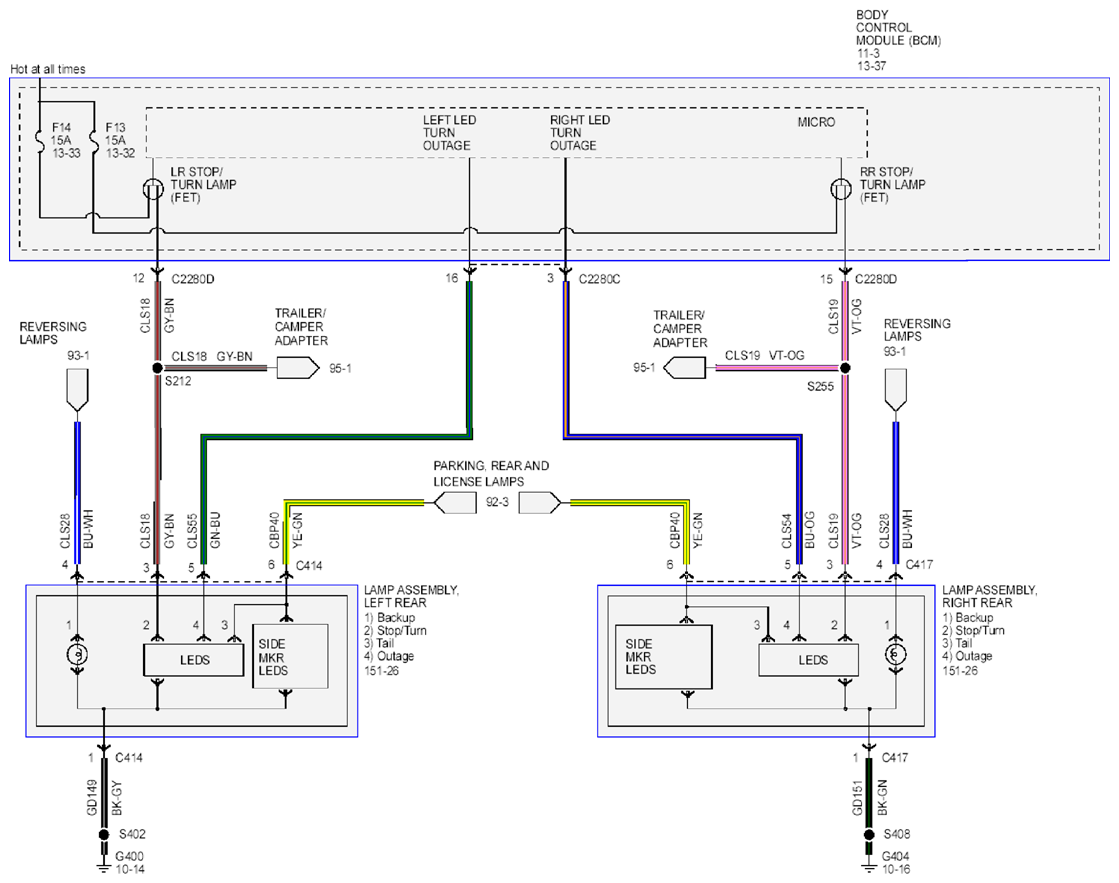

Fig 3: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (MKX; 3 Of 3)

Courtesy of FORD MOTOR CO.
