WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

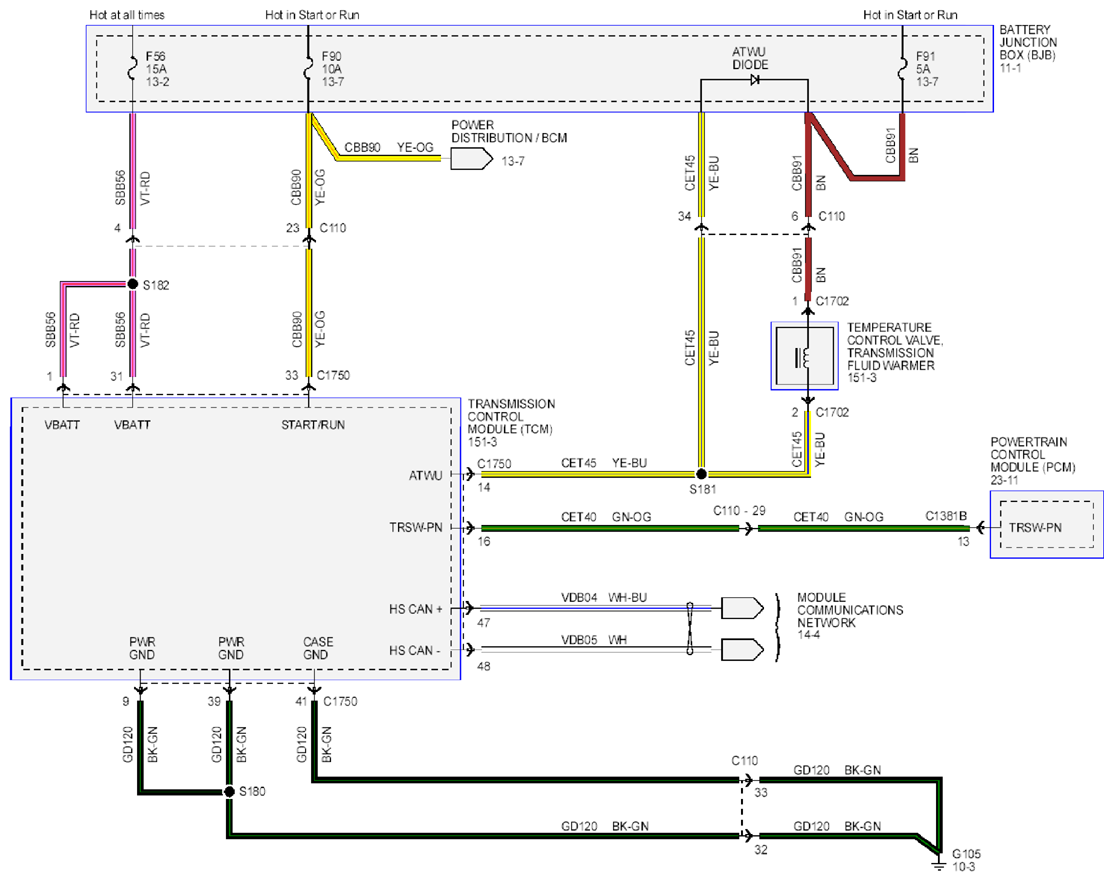

Fig 1: Transmission Control - Wiring Diagram (2.0L GTDI; 1 Of 3)
Courtesy of FORD MOTOR CO.

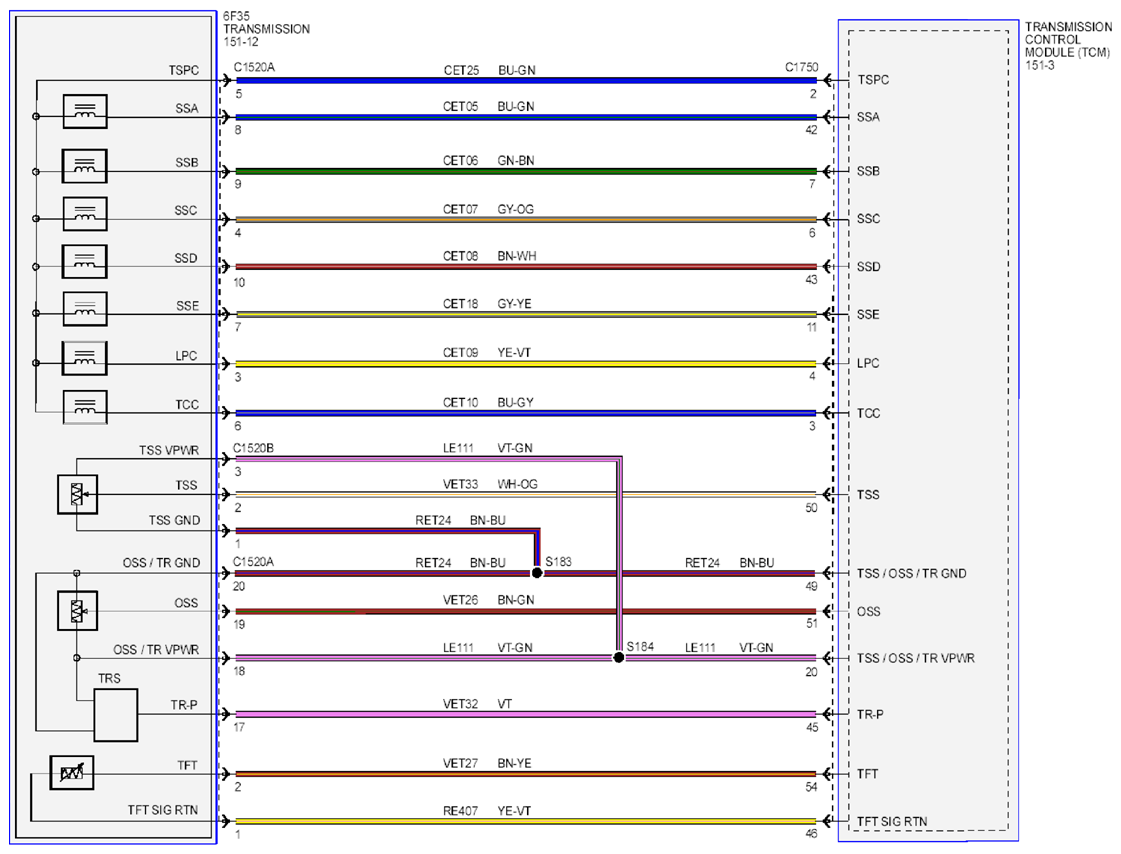

Fig 2: Transmission Control - Wiring Diagram (2.0L GTDI; 2 Of 3)
Courtesy of FORD MOTOR CO.

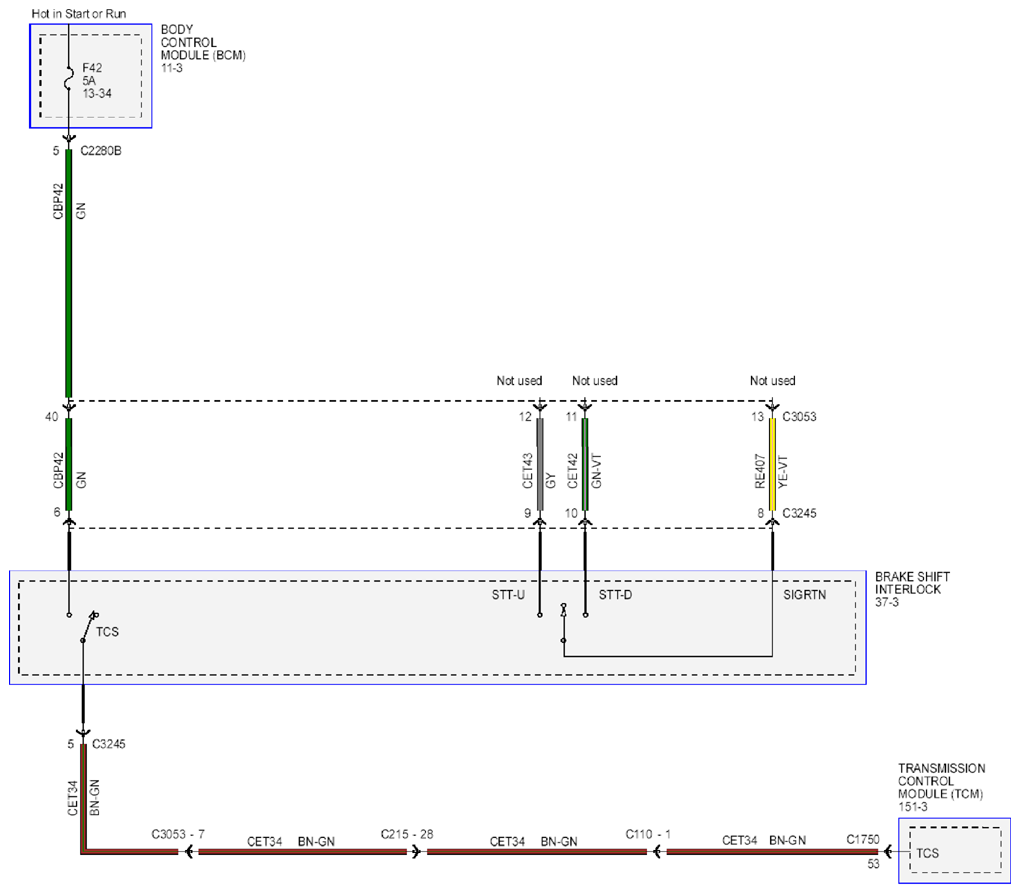

Fig 3: Transmission Control - Wiring Diagram (2.0L GTDI; 3 Of 3)
