Section 209 (OEM Wiring Diagrams)
>>
Tire Pressure Monitor System
Tire Pressure Monitor System
WARNING:
This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

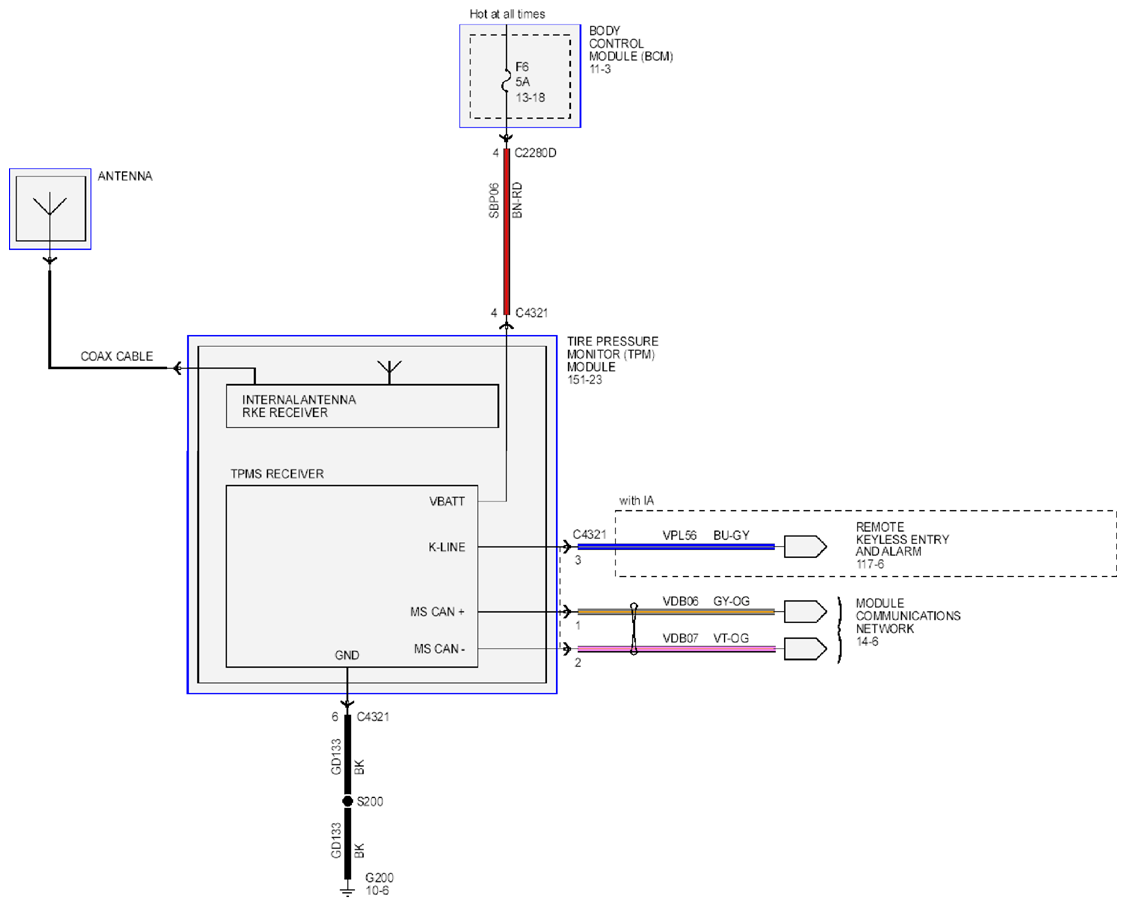

Fig 1: Tire Pressure Monitor System - Wiring Diagram
Courtesy of FORD MOTOR CO.
