With IA

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

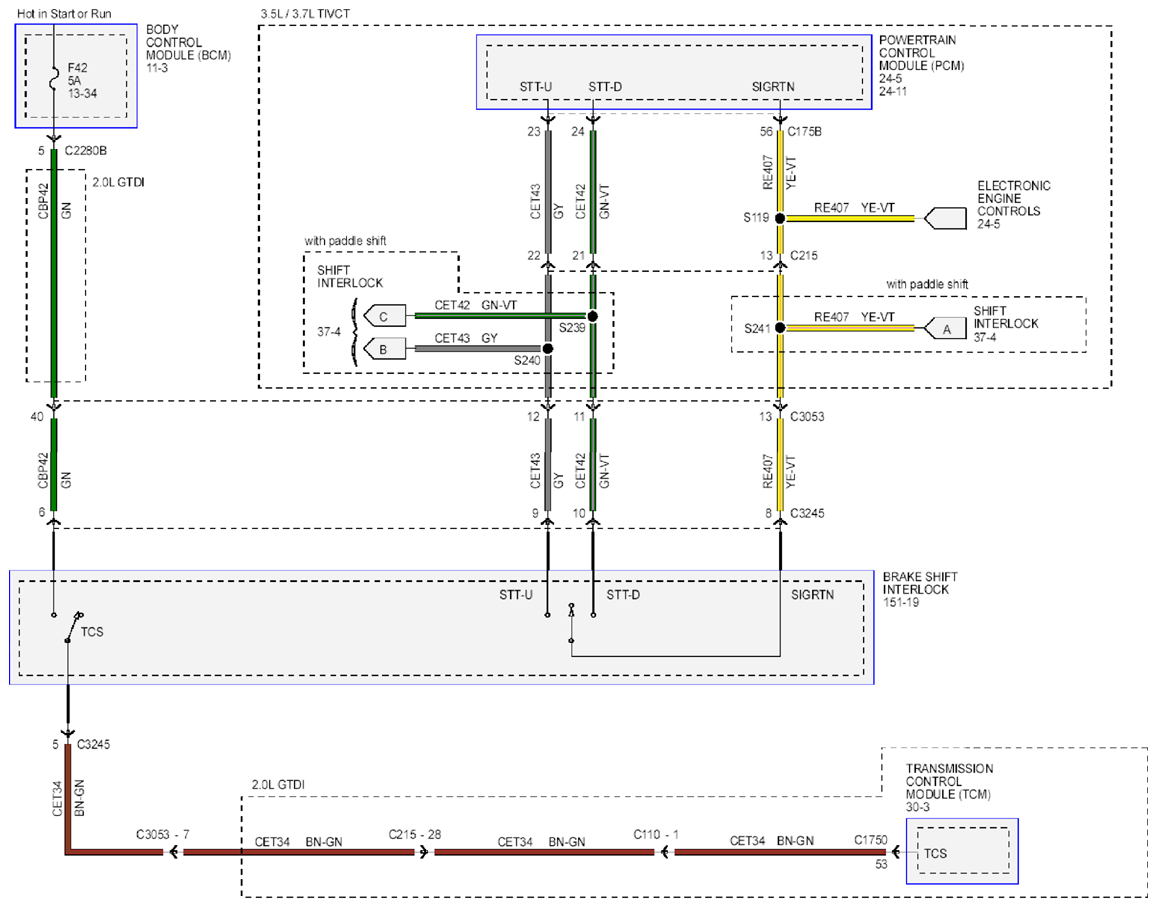

Fig 1: Shift Interlock - Wiring Diagram (With IA; 1 Of 2)

Courtesy of FORD MOTOR CO.

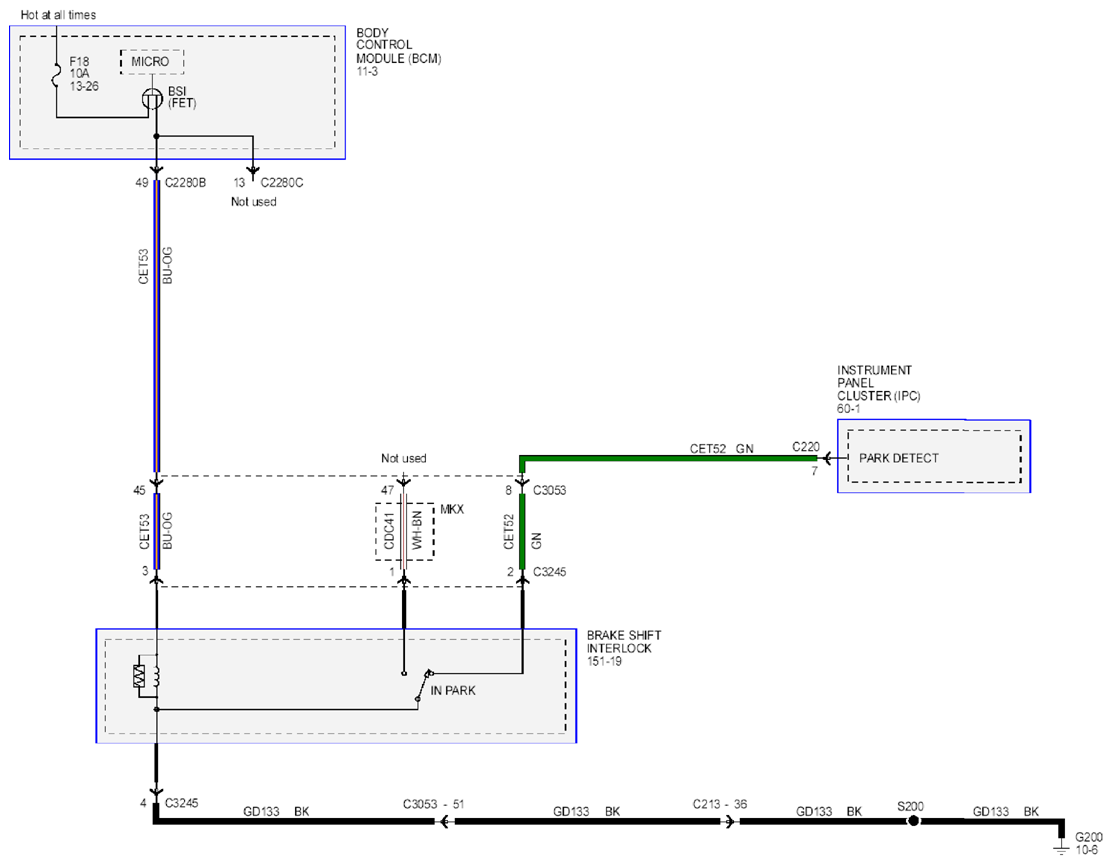

Fig 2: Shift Interlock - Wiring Diagram (With IA; 2 Of 2)

Courtesy of FORD MOTOR CO.
